点击放大查看

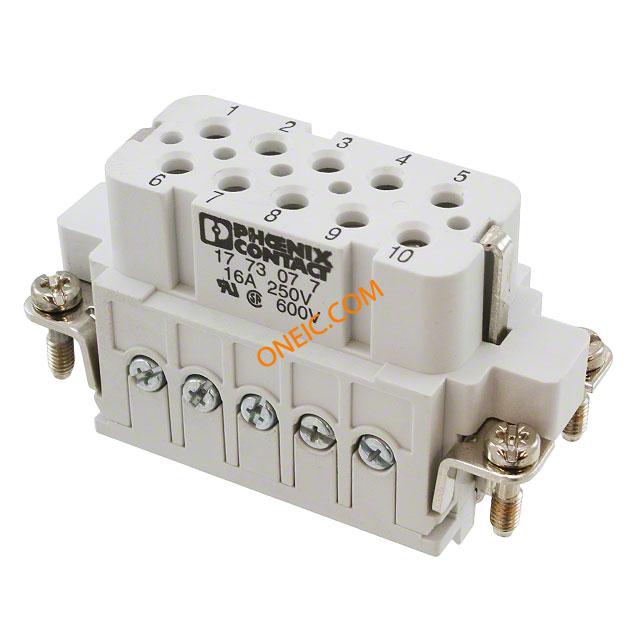

1773077
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-A 10-EBUS Conn HEAVYCON Insert F 10 POS Screw ST Panel Mount HEAVYCON FML INSERT 10POS Contact insert HC-A 10-EBUS HC-A10-EBUS |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Rectangular | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 16 A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | D15 | 深度 | 31.6 |
| 高度 | 22.8 | 重量 | 2.101270 oz |
| 包装方式 | Bulk | 端接方式 | Screw |
| 安装类型 | Straight | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 2 |
| 插入力 | Female | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 56.5 |
| 端接样式 | Screw | 第一触头极性 | F |
| 触点数 | 10 | 位数 | 10 |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Female |
| 系列 | Heavycon | 产品子类型 | Inserts |
| 行业别名 | HC-A 10-EBUS | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
