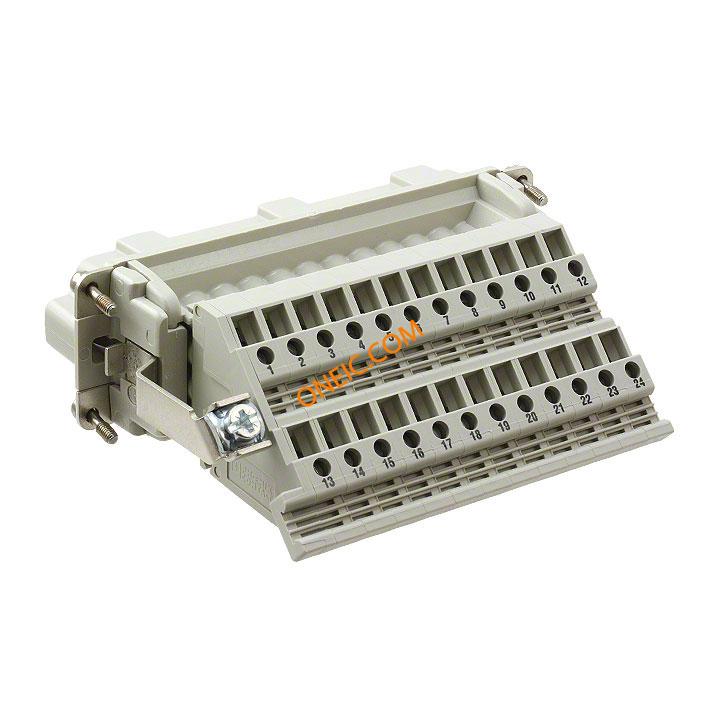

1772874
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-KA-B 24-ST/PEL Conn HEAVYCON Adapter Insert F/F 48/48 POS Panel Mount TERM ADAPTER MALE INSERT 24POS Contact insert HC-KA-B 24-ST/PEL HC-KA-B24-ST/PEL |
| 分类 |
商业参数
| 交货时间 | 40 Days | 子类别 | Connector Rectangular |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 400V | ||
机械参数
| 尺寸 | B24 | 深度 | 79 |
| 包装方式 | Bulk | 安装类型 | Panel Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide/Polycarbonate | 总长度 | 111 |
| 端接样式 | Terminal Block, Straight - Screw | 第一触头极性 | F/F |
| 触点数 | 48/48 | 位数 | 24 |
产品信息
| 类型 | HEAVYCON Adapter Insert | 连接器性别 | Male |
| 行业别名 | HC-KA-B 24-ST/PEL | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号

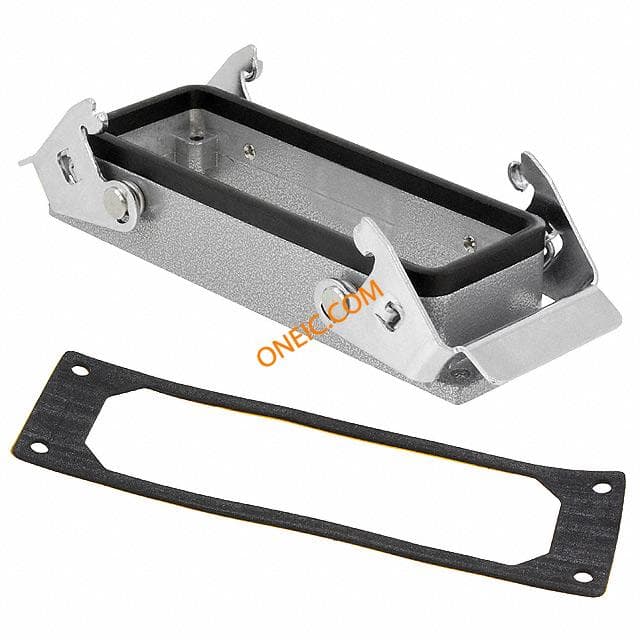

1687312
Phoenix Contact
Heavy Duty Power Connectors HC-B 24-AMQ-A Connector Accessories Mounting Base Steel PANEL MOUNT BASE B24 Housing for heavy-duty plug connectors HC-B 24-AMQ-A PanelMountBase
1771956
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-AFQD Heavy Connector Panel Mounting Base B24, For Double Locking Latch, Height 27mm, With Cover PNL MNT BASE B24 DBL LOCK LATCH Housing for heavy-duty plug connectors HC-B 24-AFQD Heavy Duty Power Connectors HC-B 24-AFQD HC-B24-AFQD Phoenix Contact HC-B 系列 连接器外壳
1642962
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-AMQ-EMV HEAVYCON Panel Mounting Base B24, With Double Locking Latch,EMC Version PANEL MOUNT BASE B24 Heavy Duty Power Connectors HC-B 24-AMQ-EMV HEAVYCON panel mounting base B24, with double locking latch, EMC version. Not suitable for D series terminal adapters HC-B24-AMQ-EMV
1775240
Phoenix Contact
Terminal Block Tools & Accessories HC-KA-FE Foot Element, For Mounting On Mounting Rail NS 32, Mounting Rail NS 35/7.5 Or Mounting Rail FOOT ELEMENT DIN RAIL Foot element for mounting terminal adapters on DIN rails HC-KA-FE FOOTELEMENT
1772832
Phoenix Contact
Terminal Block Tools & Accessories HC-KA-B 24-BU/PEL Conn HEAVYCON Adapter Insert F/F 48/48 POS Panel Mount TERM ADAPTER FEMALE INSERT 24POS Contact insert HC-KA-B 24-BU/PEL HEAVYCON terminal adapter female insert, B24 series, 24. pos., protective conductor connection on the left for the right side of ... HEAVYCON terminal adapter female insert, B24 series, 24. pos., protective conductor connection on the left for the right side of the control cabinet, screw connection; contact inserts with screw, crimp, and QUICKON connections usable as mating connectors. HC-KA-B24-BU/PEL
1771930
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-AML Panel Mounting Base, With Single Locking Latch, Height 27mm PNL MNT BASE B24 LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-AML Heavy Duty Power Connectors HC-B 24-AML HEAVYCONpanelmountingbaseB24
1771927
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-AMQ Heavy Connector Panel Mounting Base B24, With Double Locking Latch, Height 27mm PNL MNT BASE B24 DBL LOCK LATCH Connector Panel Mtg Base B24 Housing for heavy-duty plug connectors HC-B 24-AMQ Heavy Duty Power Connectors HC-B 24-AMQ PANELMOUNTINGBASEB24,27MM Phoenix Contact B24 系列 电源连接器 , 面板安装
1660083
Phoenix Contact
Heavy Duty Power Connectors HC-VSH Locking Screw Barrel To Firmly Connect Contact Inserts And Railmountable Terminal Adapters LOCKING SCREW BARREL Locking screw barrel HC-VSH HC-VSH Phoenix Contact 锁紧螺钉
1771943
Phoenix Contact
Heavy Duty Power Connectors HC-B 24-AMLD Panel Mounting Base, With Single Locking Latch, Height 27mm PNL MNT BASE B24 LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-AMLD PANELMOUNTINGBASEB24,27MM
1584583
Phoenix Contact
Heavy Duty Power Connectors HC-B 24-AFZ Connector Accessories Panel Mounting Base PANEL MOUNTING BASE HEAVYCON HC-B24-AFZ

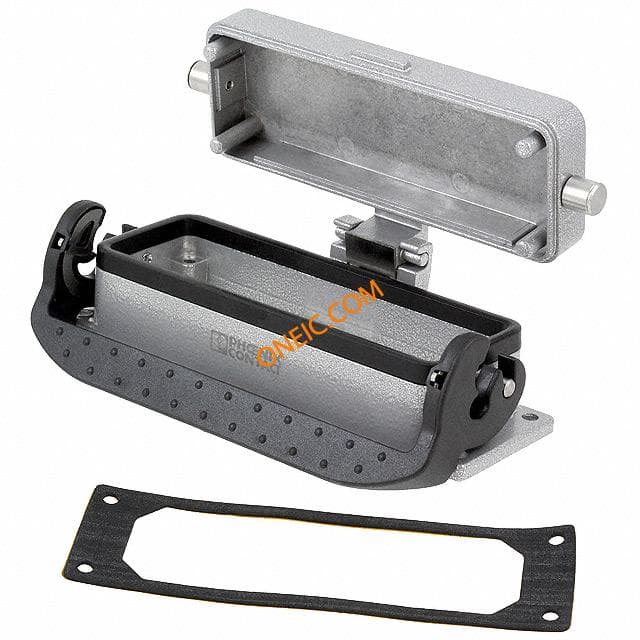

1645493
