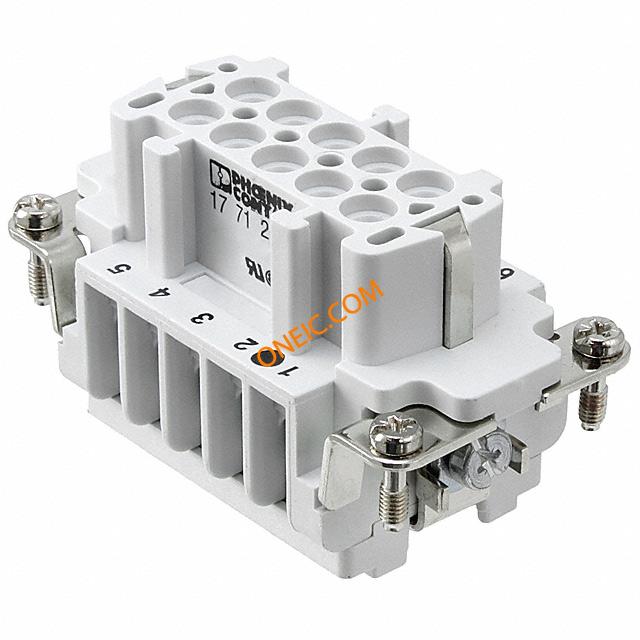

1771202
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Female B10 10P Screw Conn Terminal Block F 10 POS Screw ST Panel Mount 16A HEAVYCON FML INSERT 10POS Contact insert HC-B 10-EBUS ContactInsert,Female Phoenix Contact B10, HC 系列 2行 10针 10P+E极 直角 插座 电源连接器 , 面板安装 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Terminal Blocks | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | DIN0627/86,0110/02.79,0110-1/04.97,DINIEC60512,IEC60664-1,IEC60352 | 认证机构 | CSA,UL,VDE |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 15A |
| 最小输入电压 | 500V | ||
机械参数
| 尺寸 | B10 | 深度 | 37 |
| 高度 | 34 | 重量 | 2.607099 oz |
| 包装方式 | Bulk | 导线线规 | 20-14 |
| 方向 | 直角 | 端接方式 | Screw |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 排数 | 2 | 插入力 | Female |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 总长度 | 64mm | 端接排数 | 螺钉 |
| 端接样式 | Screw | 触点数 | 10 |
| 位数 | 10 | 安装孔直径 | 3.4mm |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | Heavycon | 极性 | 10P+E |
| CAD图纸 | 3D CAD 模型 | 制造商全称 | Heavycon/B10Series |
| 产品子类型 | Inserts | 行业别名 | HC-B 10-EBUS |
| 基础产品编号 | HC-B10-EBUS | ||
