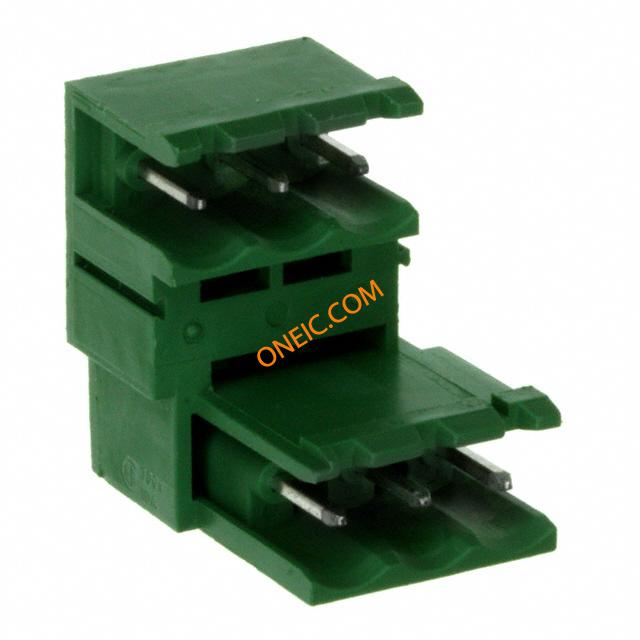

1763087

点击放大查看

1763087

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 3P 5.08mm Conn Shrouded Header HDR 3 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Header for PCB plug connector MDSTBV 2,5/ 3-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;Sldr;3Pole;5.08mmPitch;COMBICON
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers交货时间20 Days
商标名COMBICON Control子类别Connector Headers and PCB Receptacles
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
认证机构UL,CUL,CSA材料阻燃等级UL 94 V-0

电气参数

电流12A电压300V
额定电压250 V极数3Poles
最大额定电流10 A最小输入电压320V

机械参数

颜色Green深度23.7
间距0.200" (5.08mm)高度22.1
重量5.714382 oz包装方式Bulk
端接方式Solder外壳颜色Green
安装类型Straight接触镀层Tin
排数2壳体材料Polybutylene Terephthalate
总长度17.78主要材料PCB
插针孔直径5.08mm端接样式Through Hole
排针方向Vertical触点数3
位数6接线端子类型Header, Male Pins, Shrouded (2 Side)

产品信息

类型Shrouded Header级别DoubleLevel
连接器性别HDR系列MDSTBV
制造商全称COMBICON行业别名MDSTBV 2, 5/ 3-G-5, 08
层数2基础产品编号MDSTBV2,5/3-G-5,08
每层位数3

文档与媒体

PDF 文档
Color Adjustment 01/Aug/2011
PDF 文档
1763087

相关型号

1835106

1835106

Phoenix Contact

Pluggable Terminal Blocks 3P 5.08mm Conn Terminal Block F 3 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 3POS 5.08MM Printed-circuit board connector MVSTBR 2,5/ 3-STF-5,08 MVSTBR25/3-STF-508

¥14.5520
详情
暂无图片

1759990

Phoenix Contact

Pluggable Terminal Blocks IC 2.5/ 3-G-5.08 BK HEADER NOMINAL CURRENT 12A NUMBER OFPOSITIONS 3 TERM BLOCK HDR 3POS R/A 5.08MM IC25/3-G-508BK

¥12.0360
详情
暂无图片

1902738

Phoenix Contact

Pluggable Terminal Blocks IC 2.5/ 3-G-5.08 ABGY TERM BLOCK HDR 3POS R/A 5.08MM IC25/3-G-508ABGY

¥13.5320
详情
1873061

1873061

Phoenix Contact

プラグ着脱可能ターミナルブロック FKC 2 5/ 3-ST-5 08 Conn Terminal Block F 3 POS 5.08mm ST Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector FKC 2,5/ 3-ST-5,08 Pluggable Terminal Blocks FKC 2 5/ 3-ST-5 08 Conn;TermBlk;PCB;Plug;Springcage;3;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5.08mm 节距 3 路 母 绿色 直 插头, 电缆安装, 推入式端接

¥5.8195
详情
1719125

1719125

Phoenix Contact

プラグ着脱可能ターミナルブロック SMSTB 2.5/ 3-ST- 5,08 ABGY AU TERM BLOCK PLUG 3POS 5.08MM Printed-circuit board connector SMSTB 2,5/ 3-ST-5,08 ABGY AU Pluggable Terminal Blocks SMSTB 2.5/ 3-ST- 5,08 ABGY AU SMSTB25/3-ST-508ABGYAU

¥24.8200
详情
1792252

1792252

Phoenix Contact

Pluggable Terminal Blocks 5.08 3P PLUG 90DEG Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 3POS 5.08MM PLUG, FREE, 5.08MM, 3WAY Conn;TermBlk;Plug;Screw;3;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

¥5.3457
详情
1779990

1779990

Phoenix Contact

Pluggable Terminal Blocks MSTBT 2 5/ 3-ST-5 08 Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector MSTBT 2,5/ 3-ST-5,08 Conn Terminal Blocks F 3 POS 5.08mm Screw RA Cable Mount 12A MSTBT25/3-ST-508 Phoenix Contact COMBICON MSTBT 系列 5.08mm 节距 3 路 母 绿色 插头, 螺钉端接

¥18.4960
详情
1757022

1757022

Phoenix Contact

Pluggable Terminal Blocks 5.08 3P PLUG 180DEG Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM MSTB 2,5/ 3-ST-5,08 Conn;TermBlk;Plug;Screw;3;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

¥3.5280
详情

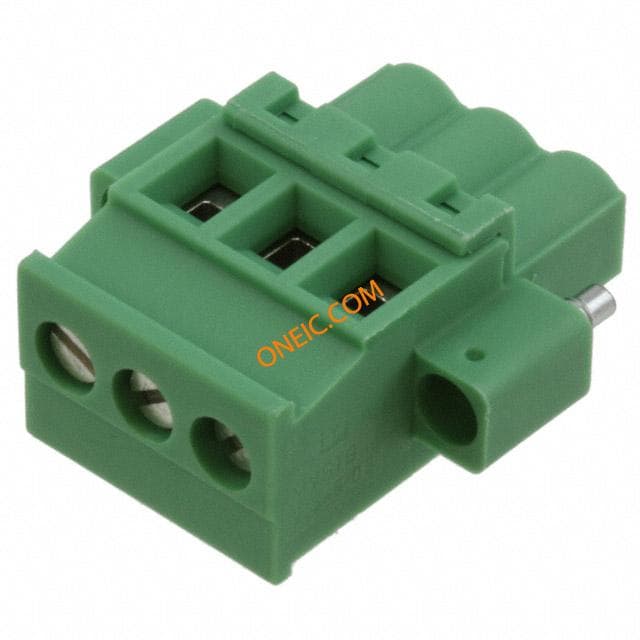

1834916
