点击放大查看
1762761
| 制造商 | |
| 描述 | Pluggable Terminal Blocks MDSTB 2.5/ 9-G1 Conn Shrouded Header HDR 18 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 18POS R/A 5MM Header for PCB plug connector MDSTB 2,5/ 9-G1 MDSTB25/9-G1 Phoenix Contact COMBICON MDSTB 系列 9路 5mm节距 PCB 接线端子块 , 焊接端接, 10A |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 61 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 10 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 22 |
| 间距 | 5 mm | 高度 | 28.5 |
| 重量 | 12.345887 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | 锡 | 壳体材料 | Polyamide |
| 总长度 | 47 | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 9 | 位数 | 18 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MDSTB | 行业别名 | MDSTB 2, 5/ 9-G1 |
| 层数 | 2 | 每层位数 | 9 |
相关型号
1779482
Phoenix Contact
Pluggable Terminal Blocks FRONT-MSTB 2 5/ 9-ST Conn Terminal Block F 17 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 9POS STR 5MM Printed-circuit board connector FRONT-MSTB 2,5/ 9-ST FRONT-MSTB25/9-ST Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 9 路 母 绿色 插头, 螺钉端接
1779903
Phoenix Contact
Pluggable Terminal Blocks MSTBT 2.5/ 9-ST Conn Terminal Block F 9 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 9POS STR 5MM Printed-circuit board connector MSTBT 2,5/ 9-ST MSTBT25/9-ST Phoenix Contact COMBICON MSTBT 系列 5mm 节距 9 路 母 绿色 插头, 螺钉端接

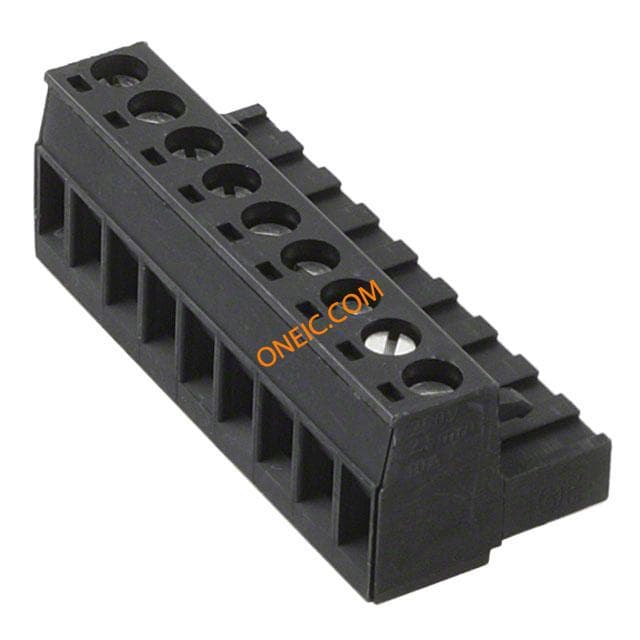

1756395
