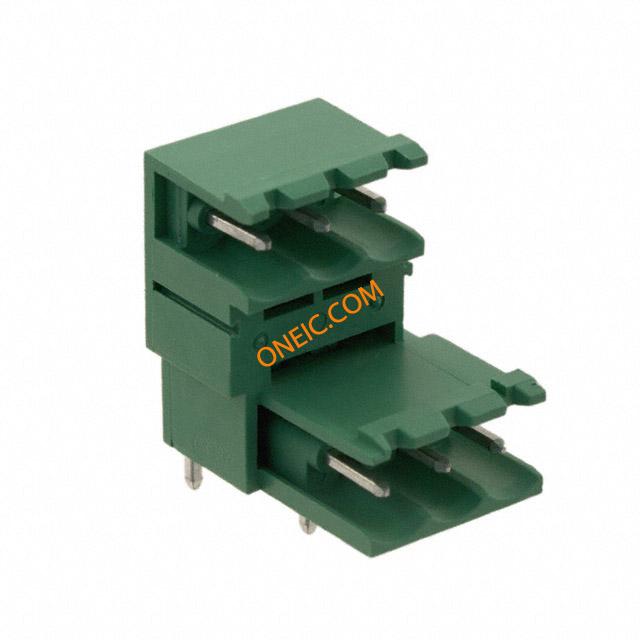

1762075

点击放大查看

1762075

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 5.08 3x3P HEADER 90D Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 3-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;3Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MDSTB 系列 5.08mm节距 3路 (2排) 直角 印刷电路板接线端子块, 焊接端接, 10A
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

产品Headers交货时间20 Days
商标名COMBICON Control子类别Connector Headers and PCB Receptacles
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
标准ULRecognized,CSACertified认证机构UL,CUL,CSA
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压250 V极数3Poles
输出电流10A标称电压320V
最大额定电流10 A最小输入电压320V
保护电压（VP）（2416）4kV

机械参数

颜色Green深度22.1
间距0.200" (5.08mm)高度23.7
重量5.573286 oz包装方式Bulk
方向直角端接方式Solder
孔径1.4mm外壳颜色Green
安装类型Right Angle接触镀层Tin
安装样式Soldering排数2
触头材料镀锡壳体材料Polybutylene Terephthalate
总长度17.78主要材料PCB
尺寸/外形15mmLx22.1mmWx30.3mmH端接排数焊接
插针孔直径5.08mm端接样式Through Hole
排针方向90°, Right Angle触点数12
位数6接线端子类型Header, Male Pins, Shrouded (2 Side)
绝缘材料 - 材质PBT法兰下方引脚尺寸1x1mm

产品信息

类型Shrouded Header级别DoubleLevel
连接器性别HDR系列MDSTB
产品特性Side Stacking (Interlocking)制造商全称COMBICON
行业别名MDSTB 2, 5/ 3-G-5, 08层数2
基础产品编号MDSTB2,5/3-G-5,08每层位数3

文档与媒体

PDF 文档
Color Adjustment 01/Aug/2011
PDF 文档
1762075

相关型号

1835106

1835106

Phoenix Contact

Pluggable Terminal Blocks 3P 5.08mm Conn Terminal Block F 3 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 3POS 5.08MM Printed-circuit board connector MVSTBR 2,5/ 3-STF-5,08 MVSTBR25/3-STF-508

¥14.5520
详情
暂无图片

1759990

Phoenix Contact

Pluggable Terminal Blocks IC 2.5/ 3-G-5.08 BK HEADER NOMINAL CURRENT 12A NUMBER OFPOSITIONS 3 TERM BLOCK HDR 3POS R/A 5.08MM IC25/3-G-508BK

¥12.0360
详情
暂无图片

1902738

Phoenix Contact

Pluggable Terminal Blocks IC 2.5/ 3-G-5.08 ABGY TERM BLOCK HDR 3POS R/A 5.08MM IC25/3-G-508ABGY

¥13.5320
详情
1873061

1873061

Phoenix Contact

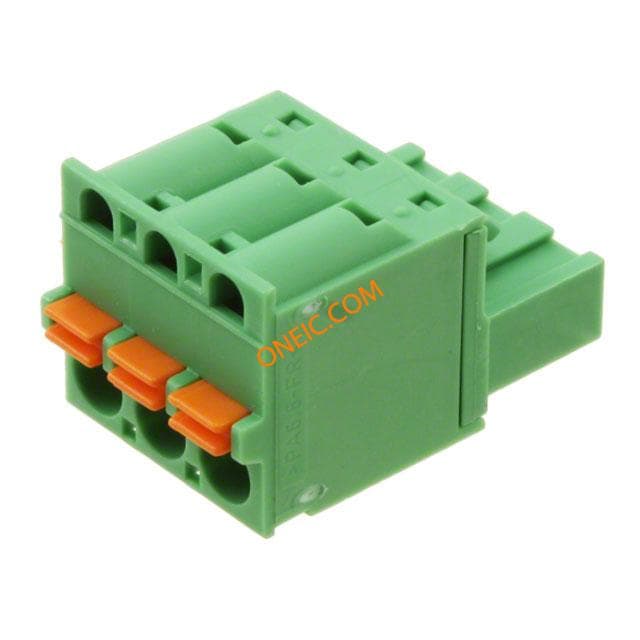

プラグ着脱可能ターミナルブロック FKC 2 5/ 3-ST-5 08 Conn Terminal Block F 3 POS 5.08mm ST Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector FKC 2,5/ 3-ST-5,08 Pluggable Terminal Blocks FKC 2 5/ 3-ST-5 08 Conn;TermBlk;PCB;Plug;Springcage;3;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5.08mm 节距 3 路 母 绿色 直 插头, 电缆安装, 推入式端接

¥5.8195
详情
1719125

1719125

Phoenix Contact

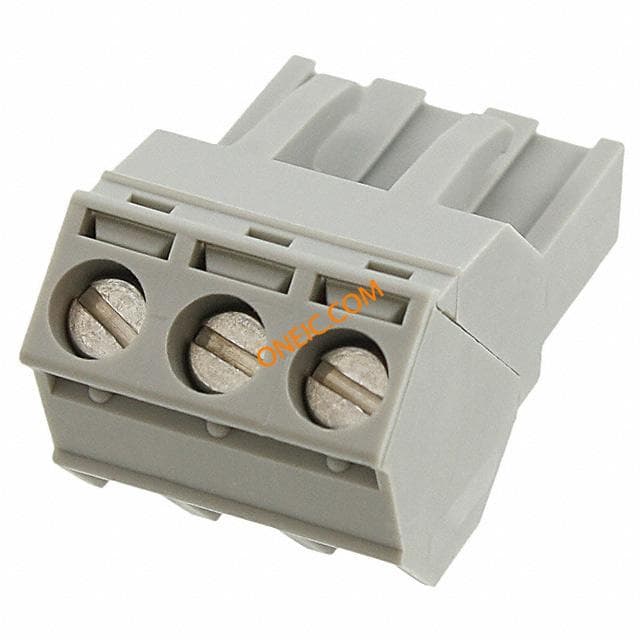

プラグ着脱可能ターミナルブロック SMSTB 2.5/ 3-ST- 5,08 ABGY AU TERM BLOCK PLUG 3POS 5.08MM Printed-circuit board connector SMSTB 2,5/ 3-ST-5,08 ABGY AU Pluggable Terminal Blocks SMSTB 2.5/ 3-ST- 5,08 ABGY AU SMSTB25/3-ST-508ABGYAU

¥24.8200
详情
暂无图片

1809747

Phoenix Contact

Pluggable Terminal Blocks MSTBC 2 5/ 3-STZF-5 Conn Terminal Block F 3 POS 5.08mm Crimp ST Panel Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Plug component, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 3, Connection type: Crimp ... Plug component, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 3, Connection type: Crimp connection, Color: green PLUGCOMPONENT,PITCH:5.08MM,POS3

¥8.5680
详情
1779990

1779990

Phoenix Contact

Pluggable Terminal Blocks MSTBT 2 5/ 3-ST-5 08 Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector MSTBT 2,5/ 3-ST-5,08 Conn Terminal Blocks F 3 POS 5.08mm Screw RA Cable Mount 12A MSTBT25/3-ST-508 Phoenix Contact COMBICON MSTBT 系列 5.08mm 节距 3 路 母 绿色 插头, 螺钉端接

¥18.4960
详情
1757022

1757022

Phoenix Contact

Pluggable Terminal Blocks 5.08 3P PLUG 180DEG Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM MSTB 2,5/ 3-ST-5,08 Conn;TermBlk;Plug;Screw;3;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

¥3.5280
详情
1834916

1834916

Phoenix Contact

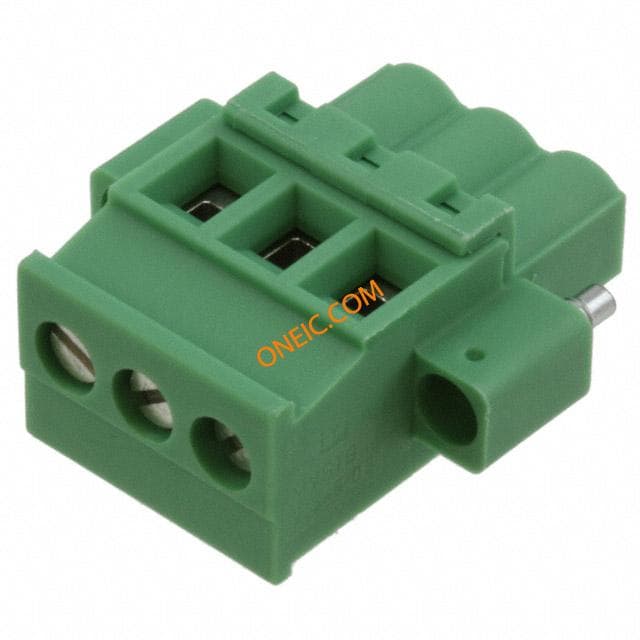

Pluggable Terminal Blocks MVSTBW 2 5/ 3-STF-5 Conn Terminal Block F 3 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 3POS 5.08MM Printed-circuit board connector MVSTBW 2,5/ 3-STF-5,08 MVSTBW25/3-STF-508

¥15.0280
详情
1777811

1777811

Phoenix Contact

Pluggable Terminal Blocks FRONT-MSTB 2 5/ 3-ST Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector FRONT-MSTB 2,5/ 3-STF-5,08 FRONT-MSTB25/3-STF-508 Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 3 路 母 绿色 插头, 螺钉端接

¥20.0335
详情
1776168

1776168

Phoenix Contact

Pluggable Terminal Blocks MSTB 2 5/ 3-STZ-5 08 Conn Terminal Block F 3 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 3POS STR 5.08MM Plug MSTB 2,5/ 3-STZ-5,08 Conn;TermBlk;Plug;Screw;3;5.08mm;24-12AWG;Green;12A;250V;M3 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 3 路 母 绿色 直 插头, 插入式, 螺钉端接

¥16.5240
详情
1805314

1805314

Phoenix Contact

Pluggable Terminal Blocks MSTBT 2 5/ 3-STF-5 0 Conn Terminal Block F 3 POS 5.08mm Screw RA Panel Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector MSTBT 2,5/ 3-STF-5,08 MSTBT25/3-STF-508 Phoenix Contact COMBICON MSTBT 系列 5.08mm 节距 3 路 母 绿色 插头, 螺钉端接

¥19.1080
详情
1777293

1777293

Phoenix Contact

Pluggable Terminal Blocks MSTB 2.5/3-ST-5.08 Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Non-Fused Terminal Block Cable Mount 3 Way, Screw Down, 320V Conn Terminal Blocks F 3 POS 5.08mm Screw ST Cable Mount 12A PCBTerminalBlock,3Pos

¥32.5040
详情
1826296

1826296

Phoenix Contact

Pluggable Terminal Blocks 5.08 3P PLUG 45DEG Conn Terminal Block F 3 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 3POS 5.08MM Printed-circuit board connector SMSTB 2,5/ 3-ST-5,08 Conn;TermBlk;Plug;Screw;3;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON SMSTB 系列 5.08mm 节距 3 路 母 绿色 直 插头, 插入式, 螺钉端接

¥15.2320
详情
1786417

1786417

Phoenix Contact

Pluggable Terminal Blocks 3P 5.08mm Conn Wire to Board HDR 3 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 5.08MM Phoenix Contact IC Series 5.08mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 12A Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;3Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON IC 系列 5.08mm节距 3路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A , 通孔

¥12.3085
详情
1777992

1777992

Phoenix Contact

Pluggable Terminal Blocks 5.08mm 3P PLG W/FLG Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector MSTB 2,5/ 3-STF-5,08 Conn Terminal Blocks F 3 POS 5.08mm Screw RA Cable Mount 12A Conn;TermBlk;PCB;Plug;Screw;3;5.08mm;24-12AWG;Green;12A;250V;M3 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 3 路 母 绿色 直 插头, 插入式, 螺钉端接

¥8.6520
详情
1883268

1883268

Phoenix Contact

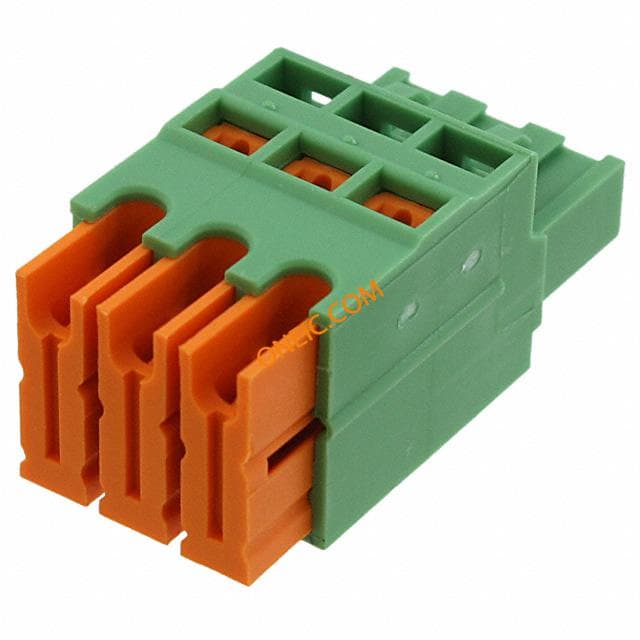

Pluggable Terminal Blocks 5.08 3P PLUG IDC Conn Terminal Block F 3 POS 5.08mm ST Cable Mount 10A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector QC 1/ 3-ST-5,08 Plug component, Nominal current: 10 A, Nom. voltage: 500 V, Pitch: 5.08 mm, Number of positions: 3, Connection type: Insulation ... Plug component, Nominal current: 10 A, Nom. voltage: 500 V, Pitch: 5.08 mm, Number of positions: 3, Connection type: Insulation displacement connection QUICKON, Color: green QC1/3-ST-508

¥20.8760
详情
1808829

1808829

Phoenix Contact

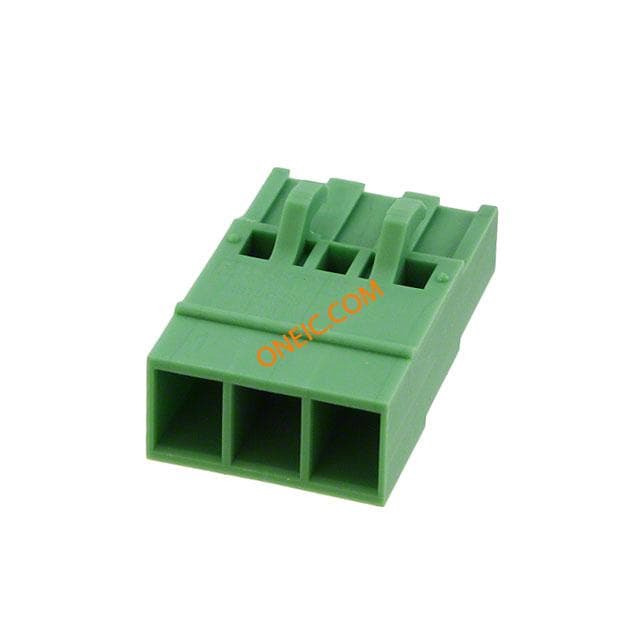

Pluggable Terminal Blocks MSTBC-2.5/3-ST-5.08 Conn Terminal Block F 3 POS 5.08mm Crimp ST Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Plug component, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm Connector;PCB;12A;320V;3Pos.;CrimpConnection;MSTBC2,5/3-ST-5,08
