点击放大查看

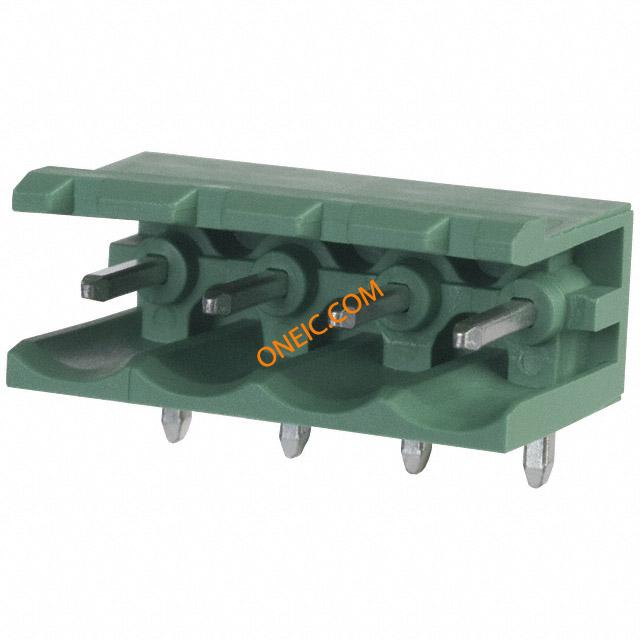

1759033
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | プラグ着脱可能ターミナルブロック 5.08 4P HEADER 90DEG Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MSTB 2,5/ 4-G-5,08 Pluggable Terminal Blocks 5.08 4P HEADER 90DEG Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;4Pole;5.08mmPitch;COMBICON |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 250 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | EN-VDE | 认证机构 | UL,CUL,CSA |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 极数 | 4Poles |
| 输出电流 | 12A | 标称电压 | 250V |
| 最大额定电流 | 12 A | 最小输入电压 | 320V |
| 最小供电电压 | 320V | 保护电压（VP）（2416） | 4kV |
机械参数
| 颜色 | Green | 深度 | 12 mm |
| 间距 | 0.200" (5.08mm) | 高度 | 8.6 mm |
| 重量 | 5.361642 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 孔径 | 1.4mm |
| 外壳颜色 | Green | 安装类型 | Right Angle |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 20.32 mm | 主要材料 | PCB |
| 尺寸/外形 | 15.24mm | 插针孔直径 | 5.08mm |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 4 | 位数 | 4 |
| 接线端子类型 | Header, Male Pins, Shrouded (2 Side) | 绝缘材料 - 材质 | PBT |
| 法兰下方引脚尺寸 | 1x1mm | ||
产品信息
| 类型 | Shrouded Header | 级别 | SingleLevel |
| 连接器性别 | HDR | 系列 | MSTB |
| 产品特性 | 90Deg | 制造商全称 | COMBICON |
| 层数 | 1 | 基础产品编号 | MSTB2,5/4-G-5,08 |
| 每层位数 | 4 | ||
