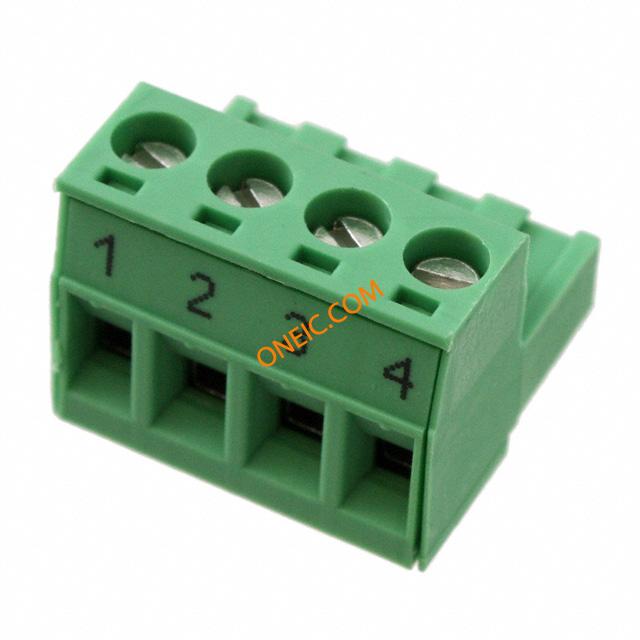

1758377
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.08mm PRE-PRINTED 4P 1-4 LEFT TO RIGHT Conn Terminal Block F 4 POS 5.08mm 12A TERM BLOCK PLUG 4POS STR 5.08MM Printed-circuit board connector MSTB 2,5/ 4-ST-5,08 BD:1-4 Conn;TermBlk;Plug;Screw;4;5.08mm;Green;12A;250V;Pre-Printed |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 间距 | 0.200" (5.08mm) |
| 重量 | 0.249387 oz | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 安装类型 | Free Hanging (In-Line) | 接触镀层 | Tin |
| 插头进线方向 | 180° | 壳体材料 | Polyamide |
| 端接样式 | Screw | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MSTB | 产品特性 | Positions Stamped, Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 4 |
