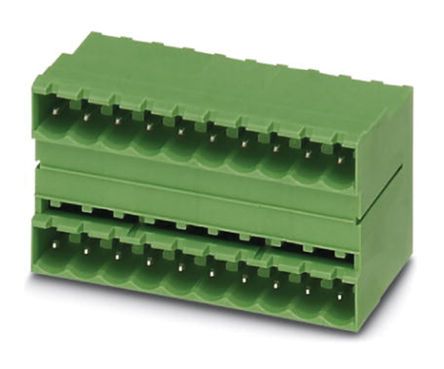

点击放大查看
1758173
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 18P 5.08mm VERTICAL Conn Shrouded Header HDR 18 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 18POS VERT 5.08MM Header for PCB plug connector MSTBV 2,5/18-G-5,08 MSTBV25/18-G-508 Phoenix Contact COMBICON MSTBV 系列 18路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 12 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 12A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 8.6 |
| 间距 | 5.08 mm | 高度 | 12 |
| 重量 | 5.432190 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Straight | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | 锡 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 91.44 | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 触点数 | 18 | 位数 | 18 |
| 接线端子类型 | Header, Male Pins, Shrouded (2 Side) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MSTBV | 行业别名 | MSTBV 2, 5/18-G-5, 08 |
| 层数 | 1 | 每层位数 | 18 |
