点击放大查看

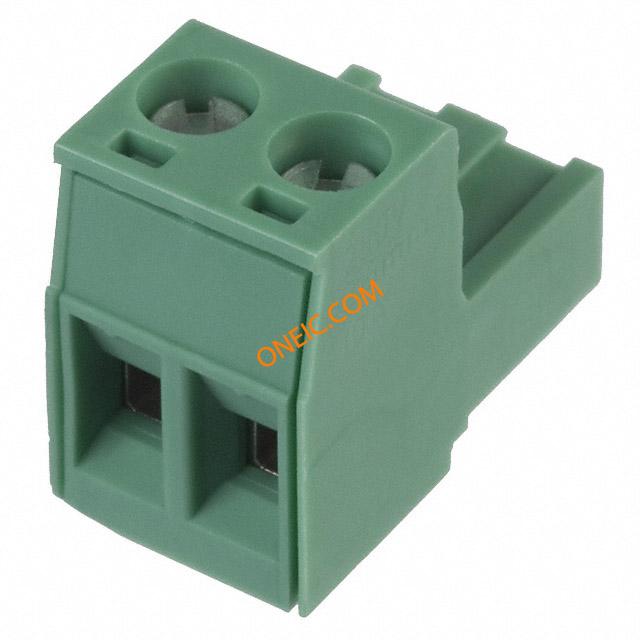

1757019
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.08 2P PLUG 180DEG Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 2POS STR 5.08MM Conn;TermBlk;Plug;Screw;2;5.08mm;30-12AWG;10A;300V;PA Pluggable terminal block; female; straight; 5.08mm; ways:2; 12A Phoenix Contact 2 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 零件号别名 | 2.5/2-ST-5.08 MSTB | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 极数 | 2 |
| 最大额定电流 | 12 A | 最小输入电压 | 320V |
机械参数
| 颜色 | Green | 深度 | 18.2 |
| 间距 | 0.200" (5.08mm) | 高度 | 15 |
| 重量 | 4.515067 oz | 材料（通用） | 尼龙 |
| 包装方式 | Bulk | 导线线规 | 12-30 AWG |
| 方向 | straight | 端接方式 | Screw |
| 柱间距 | 5.08mm | 安装类型 | Cable Mount |
| 连接器类型 | female | 接触镀层 | Tin |
| 排数 | 1 | 插头进线方向 | 180° |
| 壳体材料 | Polyamide | 总长度 | 10.16 |
| 包装数量 | 50 | 端接排数 | 螺钉拧紧 |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 2 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | 线规或范围 - mm² | 30 → 12 AWG |
产品信息
| SPG | 50 | 类型 | Terminal Block |
| 连接器性别 | F | 系列 | MSTB |
| 产品特性 | Retention Latches (Non-Wire Side) | CAD图纸 | 3D CAD 模型 |
| 线路数量 | 2 | 单元数量 | 1 |
| 行业别名 | MSTB 2, 5/ 2-ST-5, 08 | 层数 | 1 |
| 每层位数 | 2 | ||
文档与媒体
相关型号
1763074
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5.08MM Header for PCB plug connector MDSTBV 2,5/ 2-G-5,08 Header(2position)10AMP(5.08mmpitch)
1802430
Phoenix Contact
プラグ着脱可能ターミナルブロック MDSTBW 2.5/ 2-G-5.08 Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTBW 2,5/ 2-G-5,08 Pluggable Terminal Blocks MDSTBW 2.5/ 2-G-5.08 MDSTBW25/2-G-508
1872460
Phoenix Contact
プラグ着脱可能ターミナルブロック A-MSTBVA 2.5/ 2-G -5.08 Base Strip, Nominal Current 12 A, Nominal Voltage 250 V HEADER TERM BLOCK 2 POS 5.08MM Pluggable Terminal Blocks A-MSTBVA 2.5/ 2-G -5.08 A-MSTBVA25/2-G-508
1788538
Phoenix Contact
Pluggable Terminal Blocks MVSTBU 2 5/ 2-GB-5 0 Conn Terminal Block F 2 POS 5.08mm Screw Panel Mount 12A TERM BLOCK RCPT 2POS 5.08MM Header for PCB plug connector MVSTBU 2,5/ 2-GB-5,08 Conn;TermBlk;Plug;Screw;2;5.08mm;Front;24-12AWG;Green;12A;320V
1757242
Phoenix Contact
Pluggable Terminal Blocks 5.08 2P HEADER 90DEG Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 2WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
1859519
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm 180 DEG Conn Shrouded Header HDR 2 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 2POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;5.08mmPitch;COMBICON
1767371
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 2 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 2POS 45DEG 5.08MM Header for PCB plug connector SMSTBA 2,5/ 2-G-5,08 SMSTBA25/2-G-508 Phoenix Contact COMBICON SMSTBA 系列 2路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A
1762062
Phoenix Contact
Pluggable Terminal Blocks 5.08 2x2P HEADER 90D Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON
1735882
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm HDR MSTBW2 5/2-G-5 08 Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM Header MSTBW 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON
1755736
Phoenix Contact
Pluggable Terminal Blocks 5.08 2P HEADER 180DG TERM BLOCK HDR 2POS VERT 5.08MM Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole HEADER, VERTICAL, 5.08MM, 2WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBVA 系列 5.08mm节距 2路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A
1902819
Phoenix Contact
Pluggable Terminal Blocks 5.08mm 2P VERT. BLK Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 5.08MM Header for PCB plug connector MSTBVA 2,5/ 2-G-5,08 THT MSTBVA25/2-G-508THT COMBICON MSTBVA 系列 2路 5.08mm节距 PCB 接线端子块, 焊接端接, 12A
1902741
Phoenix Contact
Pluggable Terminal Blocks 5.08mm 2P R/A BLK Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM Header for PCB plug connector MSTBA 2,5/ 2-G-5,08 THT MSTBA25/2-G-508THT COMBICON MSTBA 系列 2路 5.08mm节距 PCB 接线端子块, 焊接端接, 12A
1796930000
weidmuller
Conn Shrouded Header M 2 POS 5mm Solder RA Thru-Hole Box TERM BLOCK HDR 2POS R/A 5MM

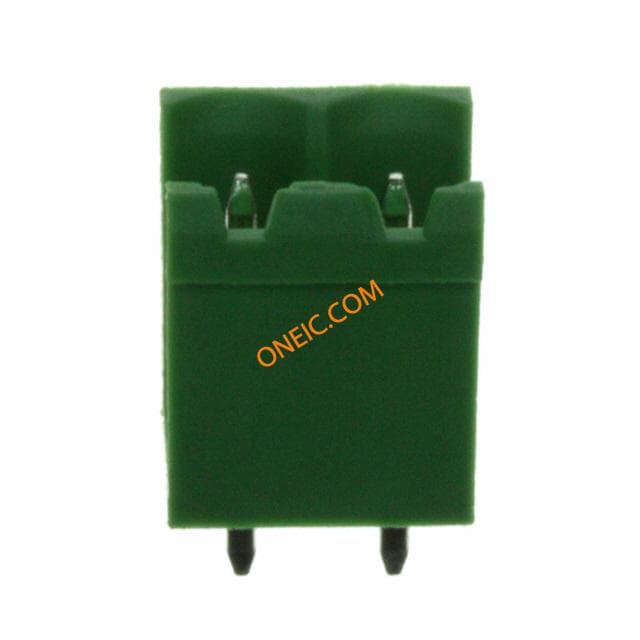

691311500002
