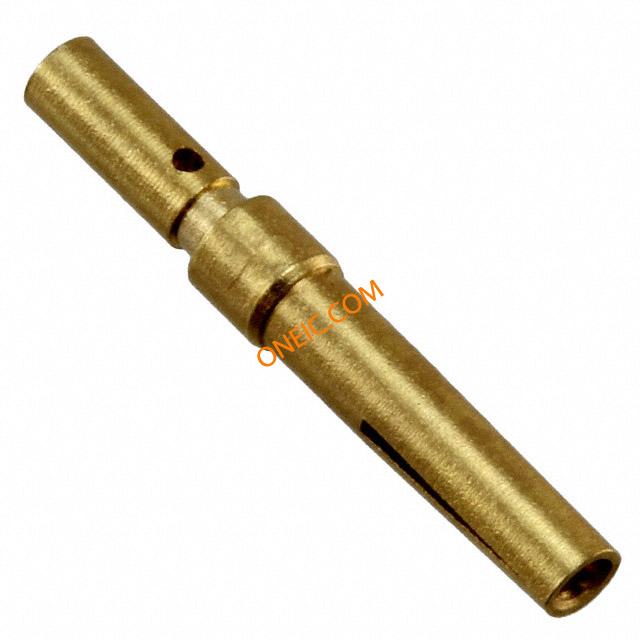

点击放大查看
1688997
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | D-Sub Contacts 28-24AWG Turned D-Sub Contact, Fem Contact SKT Crimp ST Cable Mount DSUB CRIMP FML GOLD 28-24AWG D-SUB crimp contact VS-BU-CD-1,0/14,4/0,2 CRIMPCONTACTFORD-SUBCONTACTINSERTS |
| 分类 |
商业参数
| 商标名 | PLUSCON Data | 产品类别 | D-Sub Contacts |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 重量 | 0.009877 oz | 包装方式 | Bulk |
| 导线线规 | 28-24 | 屏蔽类型 | No |
| 端接方式 | Crimp | 触点形式 | Machined |
| 触头类型 | Machined Contacts | 安装类型 | Cable Mount |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold |
| 触头材料 | Copper Alloy | 总长度 | 14.35 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | ||
产品信息
| 类型 | Signal | 连接器性别 | SKT |
环境参数
| 工作温度 | 125 | ||
