1679511
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-D 15-EBUC-R Conn HEAVYCON Insert F 15 POS Crimp ST Panel Mount INSERT FMALE 15POS+1GND CRIMP Contact insert HC-D 15-EBUC-R Heavy Duty Power Connectors HC-D 15-EBUC-R INSERT FEMALE 15POS+1GND CRIMP HC-D15-EBUC-R Phoenix Contact D15 系列 15P+E 母座 RJ45-Rangierfeld , 额定电流 10A/ 250 V |
| 分类 |
商业参数
| 交货时间 | 12 Days | 商标名 | HEAVYCON |
| 其他名称 | HC-D 15-EBUC-R | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | D15 | 深度 | 36 |
| 高度 | 22.7 | 重量 | 1.257517 oz |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | CK 1.6-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate | 总长度 | 56 |
| 端接样式 | Crimp | 第一触头极性 | F |
| 触点数 | 15 | 位数 | 15+Ground |
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Female |
| 系列 | D15 | 极性 | 15P+E |
| CAD图纸 | 3D CAD 模型 | 附件类型 | 触点插件 |
| 行业别名 | HC-D 15-EBUC-R | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1604892
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-KML-48/01M20 Heavycon Coupling Housing D15, With Single Locking Latch, Height 48 Mm, With Support 1Xm20 COUPLING HSNG D15 W/SGL LOCK HC-D15-KML-48/O1M20 Connector Housing
1645163
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-TFL-66/ O1STM20G Heavycon Sleeve Housing D15 For Single Locking Latch, Height 66 Mm, Without Support 1X M20, Straight Conductor Exit HEAVYCON HOUSING/ACCESSORY Housing for heavy-duty plug connectors HC-D 15-TFL-66/O1STM20G CONN HOOD TOP ENTRY SZD15 M20 HC-D15-TFL-66/O1STM20G
1679469
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D 15-ESTC-R Conn HEAVYCON Insert F 15 POS Crimp ST Panel Mount INSERT MALE 15POS+1GND CRIMP Contact insert HC-D 15-ESTC-R Heavy Duty Power Connectors HC-D 15-ESTC-R HC-D15-ESTC-R Phoenix Contact D15 系列 15P+E 公插 RJ45-Rangierfeld , 额定电流 10A/ 250 V
1884115
Phoenix Contact
ヘビーデューティパワーコネクタ Rolled Fem Cont. Ag, 0.5mm-1.5mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 20-16AWG Crimp contact, 1.6mm, female Crimp contact CK1,6-ER-1,50BU AG Heavy Duty Power Connectors Rolled Fem Cont. Ag, 0.5mm-1.5mm CK16-ER-150BUAG Phoenix Contact VC-D 系列 母座 滚压触点 , 适用于大负荷电源连接器
1604895
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D 15-SML-52/O2M25 Misc Products HEAVYCON HOUSING/ACCESSORY Heavy Duty Power Connectors HC-D 15-SML-52/O2M25 CONN BASE SIDE ENTRY SZD15 M25 HC-D15-SML-52/O2M25 Connector Housing
1772395
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-SML-52/ M2PG16 Box Mounting Base, With Single Locking Latch, Height 52mm, With Screw Connection, 2X PG16 HEAVYCON BOX MOUNTING BASE HC-D15-SML-52/M2PG16 Phoenix Contact HC-D 系列 连接器外壳 , PG16螺纹, 适用于A10，HC-D15
1772382
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-SML-52/ M1PG16 Box Mounting Base, With Single Locking Latch, Height 52 Mm, With Screw Connection, 1X Pg16 BOX MOUNT BASE W/ LOCKING LATCH Housing for heavy-duty plug connectors HC-D 15-SML-52/M1PG16 BOXMOUNTINGBASE,52MM,1XPG16
1604893
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-SML-52/O1M25 Heavycon Box Mounting Base D 15, With Single Locking Latch, Height52 Mm, With Support 1X M25 BOX MNT BASE D 15 W/SGL LOCK Housing for heavy-duty plug connectors HC-D 15-SML-52/O1M25 HC-D15-SML-52/O1M25 Connector Housing
1584868
Phoenix Contact

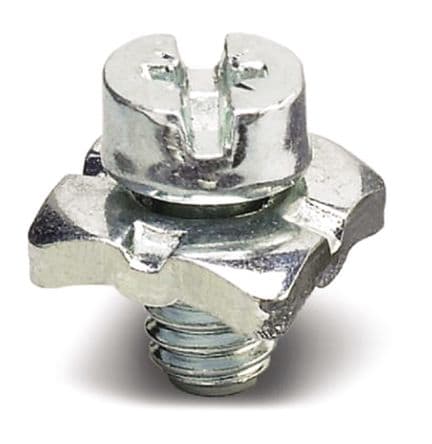

Heavy Duty Power Connectors HC-A-PES Pe Screw For Contact Inserts Of A Series, 0.0012 Kg Weight/Piece HEAVYCON HOUSING/ACCESSORY HC-A-PES Phoenix Contact 螺钉
