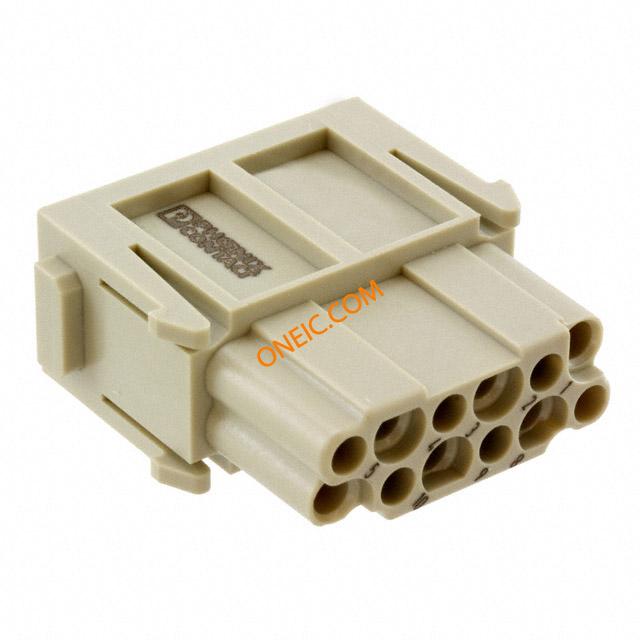

1663323

点击放大查看

1663323

制造商
Phoenix Contact GmbH & Co. KG
描述ヘビーデューティパワーコネクタ Insert Female 12P Crimp Connector Accessories Housing Crimp 12 POS Female Gray Polycarbonate HEAVYCON INSERT MODULE FML 12POS Contact insert HC-M-12-MOD-BU Heavy Duty Power Connectors Insert Female 12P Crimp HEAVYCONCONTACTINSERTFEMALE12-POS
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

交货时间20 Days商标名HEAVYCON
子类别Connector Accessories产品类别Heavy Duty Power Connectors
标准包装数量2工厂包装数量2

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

额定电压600V最大额定电流10 A

机械参数

深度34高度14.6
重量0.386603 oz包装方式Bulk
触头类型CK 1.6-ED连接器类型Module without Contacts
接触镀层Silver插入力Female
触头材料Copper Alloy壳体材料Polycarbonate (PC)
总长度34.2端接样式Crimp
触点数12位数12
线规或范围 - AWG22-14

产品信息

类型Insert连接器性别Female
产品子类型Inserts行业别名HC-M-12-MOD-BU

环境参数

工作温度-40°C ~ 125°C

文档与媒体

PDF 文档
1663323

相关型号

1679304

1679304

Phoenix Contact

Heavy Duty Power Connectors HC-M-MHR-A4-N HEAVYCON Hinged Retaining Frame, For Supporting Base Element HCB 16, For 4 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A4-N Heavy Duty Power Connectors Hinged Frame for B16 Housing, 4 Modules HINGEDRETAININGFRAMEFOR4MODULES

¥89.1480
详情
1663446

1663446

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 2.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ED-2,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Ag TURNED1.6CRIMPCONTACTFEMALE

¥5.1680
详情
1884115

1884115

Phoenix Contact

ヘビーデューティパワーコネクタ Rolled Fem Cont. Ag, 0.5mm-1.5mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 20-16AWG Crimp contact, 1.6mm, female Crimp contact CK1,6-ER-1,50BU AG Heavy Duty Power Connectors Rolled Fem Cont. Ag, 0.5mm-1.5mm CK16-ER-150BUAG Phoenix Contact VC-D 系列 母座 滚压触点 , 适用于大负荷电源连接器

¥5.0646
详情
1663310

1663310

Phoenix Contact

ヘビーデューティパワーコネクタ Insert Male 12P Crimp Connector Accessories Housing Crimp 12 POS Male Gray HEAVYCON INSERT MODULE ML 12POS Contact insert HC-M-12-MOD-ST Heavy Duty Power Connectors Insert Male 12P Crimp HEAVYCONCONTACTINSERTMALE12-POS

¥28.2200
详情
1663394

1663394

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 0.14-0.37mm Ag Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 26-22AWG Crimp contact CK1,6-ED-0,37BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.14-0.37mm Ag CK16-ED-037BUAG

¥5.5080
详情
1885004

1885004

Phoenix Contact

ヘビーデューティパワーコネクタ Fiber Opt Fem Cont POF, for VC-D Insert Contact PIN/SKT Crimp ST Cable Mount FIBER OPTIC FEMALE CONTACT POF POF female contact CK1,6-ED-BU-POF Heavy Duty Power Connectors Fiber Opt Fem Cont POF, for VC-D Insert CK16-ED-BU-POF

¥88.6040
详情

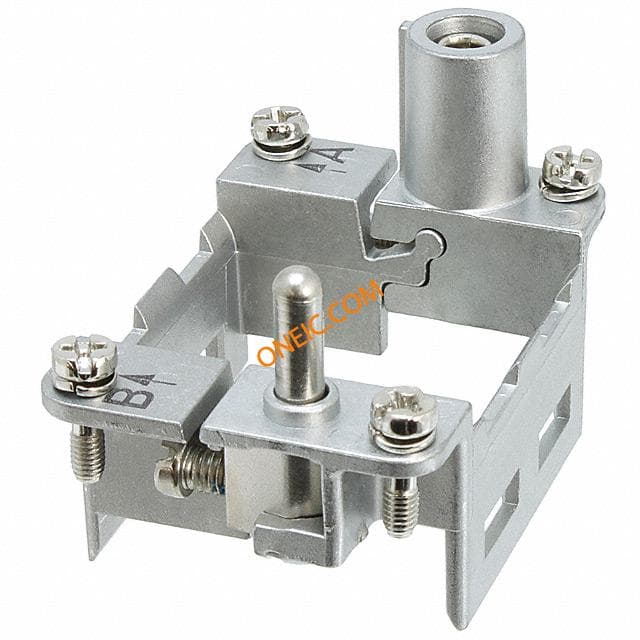

1679281

1679281

Phoenix Contact

Heavy Duty Power Connectors Hinged Frame for B6 Housing, 2 Modules HEAVYCON Hinged Retaining Frame, For Supporting Base Element HCB 6, For 2 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A2-N HC-M-MHR-A2-N

¥81.4626
详情
1663404

1663404

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 0.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 0.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 20AWG Crimp contact CK1,6-ED-0,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.5mm Ag TURNED1.6CRIMPCONTACTFEMALE

¥5.5080
详情
1674985

1674985

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Au Contact SKT Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT FEMALE Crimp contact CK1,6-ED-2,50BU AU Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Au CK16-ED-250BUAU Phoenix Contact HC-M 系列 母座 压接触点 , 额定电流 0.005A/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D

¥10.6760
详情

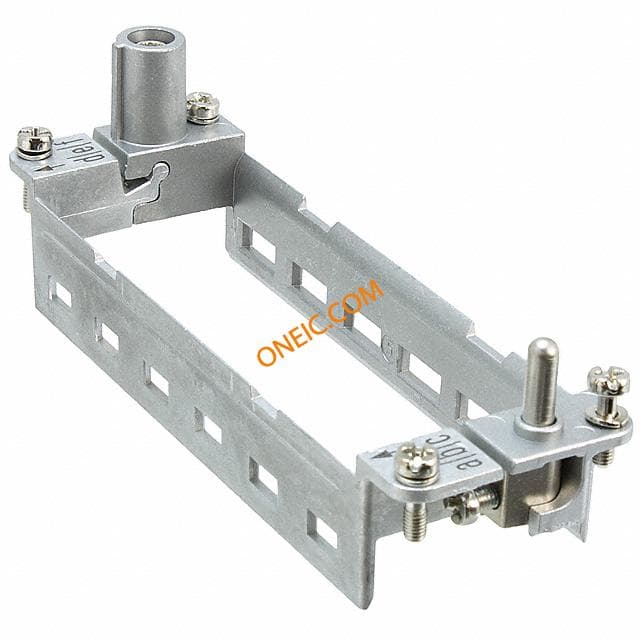

1679317

1679317

Phoenix Contact

Heavy Duty Power Connectors Hinged Frame for B24 Housing, 6 Modules HEAVYCON Hinged Retaining Frame, For Panel Mounting Base HC-B 24, For 6 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A6-N HINGEDRETAININGFRAMEFOR6MODULES

¥102.1360
详情
1884131

1884131

Phoenix Contact

ヘビーデューティパワーコネクタ Rolled Fem Cont. Ag, 1.5mm-2.5mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ER-2,50BU AG Heavy Duty Power Connectors Rolled Fem Cont. Ag, 1.5mm-2.5mm CK16-ER-250BUAG Phoenix Contact 母座 压接触点 , 适用于HC-D 到 HC-R，VC-D 到 VC-R

¥5.2360
详情
1663433

1663433

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 1.5mm Ag Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 16AWG Crimp contact CK1,6-ED-1,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 1.5mm Ag TURNED1.6CRIMPCONTACTFEMALE

¥5.5080
详情

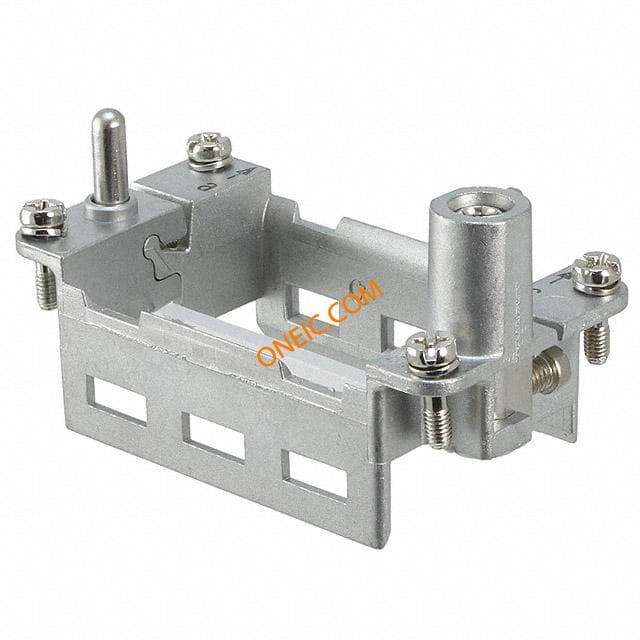

1679252
