点击放大查看

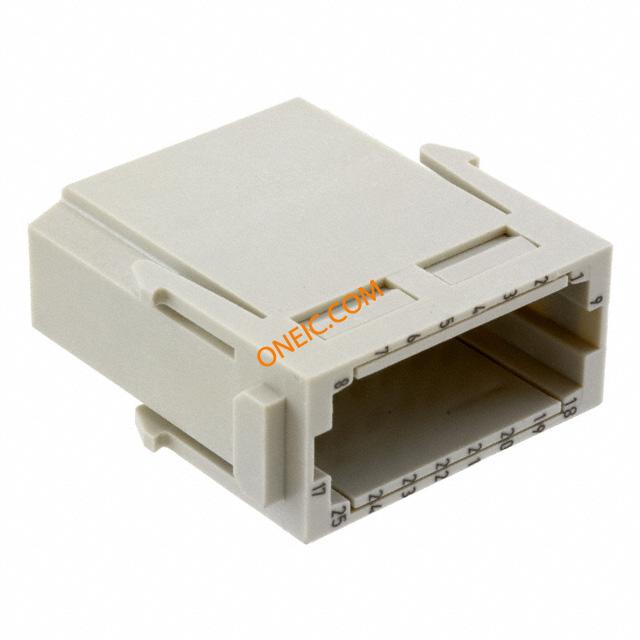

1605004
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Insert Male 25P Crimp Misc Products HEAVYCON INSERT MODULE ML 25POS Contact insert HC-M-25-MOD-ST Heavy Duty Power Connectors Insert Male 25P Crimp HC-M-25-MOD-ST |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 50V | 最大额定电流 | 5A |
机械参数
| 重量 | 0.354503 oz | 包装方式 | Bulk |
| 触头类型 | VS | 连接器类型 | Module without Contacts |
| 接触镀层 | Gold | 插入力 | Male |
| 壳体材料 | Polycarbonate (PC) | 端接样式 | Crimp |
| 触点数 | 25 | 位数 | 25 |
产品信息
| 连接器性别 | Male | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
