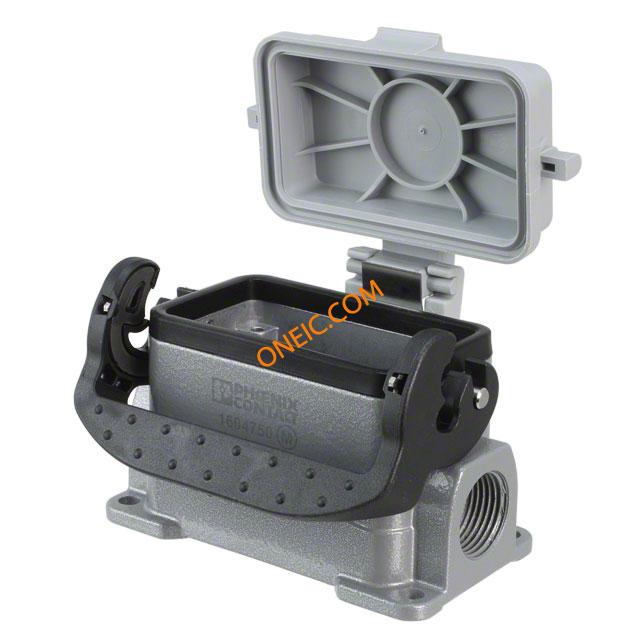

点击放大查看
1604750
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-B10-SMLD-52/O2M20 Heavycon Box Mounting Base B10, With Double Locking Latch, Height CONN BOX MNT BASE B10 M20 HC-B10-SMLD-52/O2M20 Connector Housing |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B10 | 重量 | 9.071405 oz |
| 包装方式 | Bulk | 螺纹尺寸 | M20 |
| 外壳颜色 | Gray | 连接器类型 | Base - Box Mount |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 3.661" L x 2.244" W x 2.047" H (93.00mm x 57.00mm x 52.00mm) | 端接样式 | Cable |
| 触点数 | 2 | ||
产品信息
| 样式 | Side Entry | 系列 | HC-SMLD |
| 产品特性 | Feed Through | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Accessories | 锁定位置 | Side Clip on Base Bottom |
| 附件类型 | Box Mounting Base | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
文档与媒体
