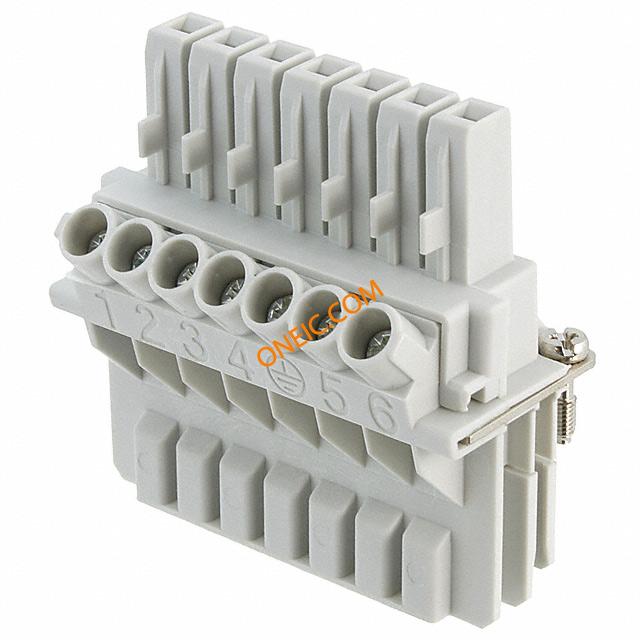

1602203
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors DC-B 6-ID-7X4-UT SCREW CONN 6X4mm Conn Terminal Block F 6 POS Screw Cable Mount 25A CONNECTOR PLUG 6POS Contact insert DC-B 6-ID-7X4-UT DC-B6-ID-7X4-UT |
| 分类 |
商业参数
| 商标名 | DUPLICON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 25A |
| 最小输入电压 | 600V | ||
机械参数
| 尺寸 | B6 | 颜色 | Gray |
| 深度 | 53 | 高度 | 29.5 |
| 重量 | 2 oz | 包装方式 | Bulk |
| 导线线规 | 12-24 | 端接方式 | Screw |
| 安装类型 | Cable Mount | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 1 |
| 触头材料 | Copper | 壳体材料 | Polyamide (PA), Nylon |
| 总长度 | 54.5 | 端接样式 | Screw |
| 触点数 | 6 | 位数 | 6 |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | DC-B | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
3040588
Phoenix Contact
Terminal Block Tools & Accessories PC Connector Accessories Keying CONN TERM BLK KEYING STAR RED Phoenix Contact 3040588 Keying Star Terminal Block, Series: PC KEYINGSTAR,RED Phoenix Contact CLIPLINE 系列 键接星
1602041
Phoenix Contact
ヘビーデューティパワーコネクタ DC-B 6-HD-M20-M STACK HOUSING M20 Access Aluminum Stackable Housing ALUMINUM STACKABLE HOUSING Stackable housing DC-B 6-HD-M20-M Heavy Duty Power Connectors DC-B 6-HD-M20-M STACK HOUSING M20 DC-B6-HD-M20-M
0201155
Phoenix Contact
Terminal Block Tools & Accessories EB 2- 6 2P INSERTION BRIDGE Insertion Bridge, 2-Positions, Fully Insulated TERM BLOCK INSERTION BRIDGE 2POS InsertionBridge;TermBlk;Universal;2;Gray;Angled
1581291
Phoenix Contact
ヘビーデューティパワーコネクタ DC-B 6-HD-M25-M-BK DC-B 6-HD-M25-M-BK DC-B6-HD-M25-M-BK Heavy Duty Power Connectors DC-B 6-HD-M25-M-BK

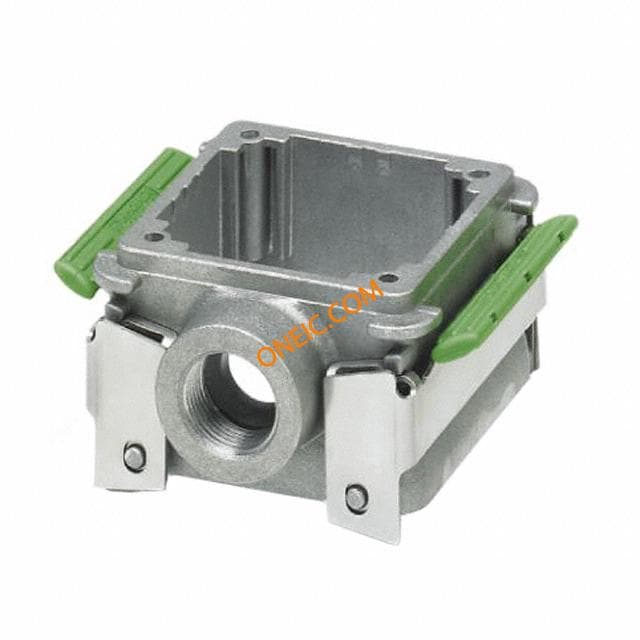

1602054
