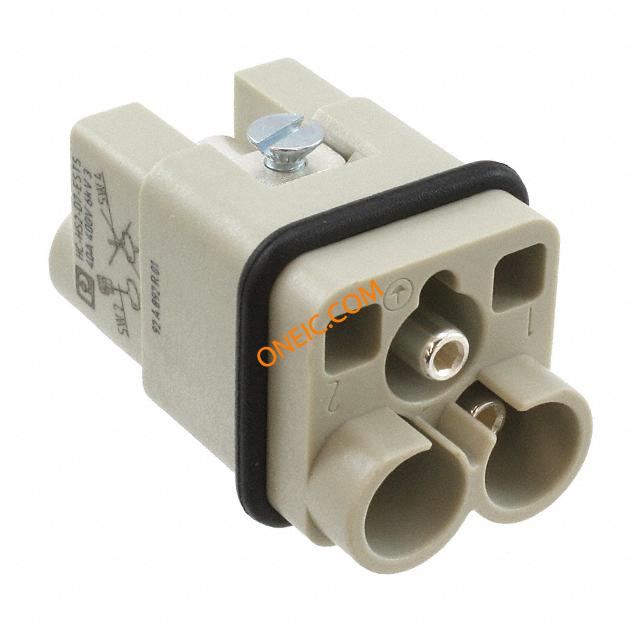

点击放大查看
1586277
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-HS 2-D7-ESTS Conn HEAVYCON Insert M 2 POS Screw ST Cable Mount MALE INSERT 2+PE-POS AXIAL SCREW HC-HS2-D7-ESTS Phoenix Contact HS2 系列 2P+E 公插 触点插件 , 额定电流 40A/ 400 V |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 标准包装规格 | 10 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 28A |
机械参数
| 尺寸 | D7 | 包装方式 | Bulk |
| 端接方式 | Screw | 安装类型 | Cable Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate (PC) | 端接样式 | Screw |
| 第一触头极性 | M | 触点数 | 2 |
| 位数 | 2+Ground | 线规或范围 - AWG | 10 |
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 系列 | Heavycon | 极性 | 2P+E |
| CAD图纸 | 3D CAD 模型 | 产品子类型 | Inserts |
| 附件类型 | 触点插件 | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
