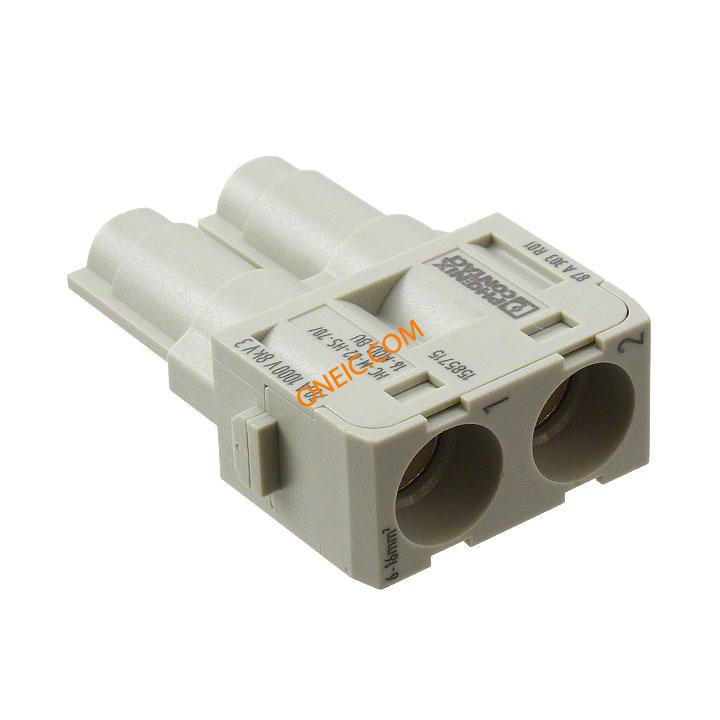

1585715
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Insert Female 2P 70A 16 mm Axial Scrw Conn HEAVYCON Contact Insert Module SKT 2 POS Screw ST HEAVYCON INSERT MODULE FML 2POS Heavy Duty Power Connectors Insert Female 2P 70A 16 mm Axial Scrw HC-M-02-HS-70/16-MOD-BU |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 标准包装规格 | 1 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 70A |
| 最小输入电压 | 1000V | ||
机械参数
| 深度 | 46.5 | 高度 | 14.6 |
| 重量 | 1.133000 oz | 包装方式 | Bulk |
| 端接方式 | Screw | 安装类型 | Straight |
| 连接器类型 | Module | 接触镀层 | Silver |
| 插入力 | Female | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate (PC) | 总长度 | 34.2 |
| 端接样式 | Screw | 第一触头极性 | SKT |
| 触点数 | 2 | 位数 | 2 |
| 线规或范围 - AWG | 8-6 | ||
产品信息
| 类型 | HEAVYCON Contact Insert Module | 连接器性别 | Female |
| 系列 | Heavycon | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
