1584376
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Conn HEAVYCON Insert M 15 POS ST Panel Mount INSERT MALE 15POS+1GND CRIMP Heavy Duty Power Connectors HC-D 15-I-CT-M HC-D15-I-CT-M |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 其他名称 | HC-D 15-I-CT-M |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | D15 | 深度 | 34.2 |
| 高度 | 22.5 | 包装方式 | Bulk |
| 触头类型 | CK 1.6-ED | 安装类型 | Panel Mount |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver|Gold |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 55.4 |
| 端接样式 | Crimp | 第一触头极性 | M |
| 触点数 | 15 | 位数 | 15+Ground |
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 产品子类型 | Insert | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
1645163
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-TFL-66/ O1STM20G Heavycon Sleeve Housing D15 For Single Locking Latch, Height 66 Mm, Without Support 1X M20, Straight Conductor Exit HEAVYCON HOUSING/ACCESSORY Housing for heavy-duty plug connectors HC-D 15-TFL-66/O1STM20G CONN HOOD TOP ENTRY SZD15 M20 HC-D15-TFL-66/O1STM20G
1604895
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D 15-SML-52/O2M25 Misc Products HEAVYCON HOUSING/ACCESSORY Heavy Duty Power Connectors HC-D 15-SML-52/O2M25 CONN BASE SIDE ENTRY SZD15 M25 HC-D15-SML-52/O2M25 Connector Housing
1663365
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Phoenix Contact 1663365 Crimp Contact Terminal Block, Series: CK Crimp contact CK1,6-ED-1,00ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag TURNED1.6CRIMPCONTACTMALE Phoenix Contact CK 系列 压接触点
1674901
Phoenix Contact
ヘビーデューティパワーコネクタ CK1.6-ED-0.37ST AU Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 24-22AWG Crimp contact CK1,6-ED-0,37ST AU Heavy Duty Power Connectors CK1.6-ED-0.37ST AU TURNED1.6CRIMPCONTACTMALE
1674875
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 1.5mm Au Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 16AWG Crimp contact CK1,6-ED-1,50ST AU Turned 1.6 crimp contact, individual male contact, core diameter 1.5 mm², gold-plated TURNED1.6CRIMPCONTACTMALE
1772395
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-SML-52/ M2PG16 Box Mounting Base, With Single Locking Latch, Height 52mm, With Screw Connection, 2X PG16 HEAVYCON BOX MOUNTING BASE HC-D15-SML-52/M2PG16 Phoenix Contact HC-D 系列 连接器外壳 , PG16螺纹, 适用于A10，HC-D15
1772382
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-SML-52/ M1PG16 Box Mounting Base, With Single Locking Latch, Height 52 Mm, With Screw Connection, 1X Pg16 BOX MOUNT BASE W/ LOCKING LATCH Housing for heavy-duty plug connectors HC-D 15-SML-52/M1PG16 BOXMOUNTINGBASE,52MM,1XPG16
1604893
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-SML-52/O1M25 Heavycon Box Mounting Base D 15, With Single Locking Latch, Height52 Mm, With Support 1X M25 BOX MNT BASE D 15 W/SGL LOCK Housing for heavy-duty plug connectors HC-D 15-SML-52/O1M25 HC-D15-SML-52/O1M25 Connector Housing
1645176
Phoenix Contact
Heavy Duty Power Connectors HC-D 15-TFL-66/ O1STM25G Heavycon Sleeve Housing D15 For Single Locking Latch, Height 66 Mm, Without Support 1X M25, Straight Conductor Exit SLEEVE HSNG D15 FOR SNGL LATCH Housing for heavy-duty plug connectors HC-D 15-TFL-66/O1STM25G HC-D15-TFL-66/O1STM25G
1674914
Phoenix Contact
ヘビーデューティパワーコネクタ CK1.6-ED-0.75ST AU Turned Male Contacts, Diameter 1.6mm, For HCM12, HCMEMV, HCD, HCDD And VCD Contact Carriers CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-0,75ST AU Heavy Duty Power Connectors CK1.6-ED-0.75ST AU CK16-ED-075STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 5mA/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1604010
Phoenix Contact
Heavy Duty Power Connectors HC-SMR-D15 Heavycon Connector Assembly Frame, For Contact Inserts Of Type D15 HEAVYCON HC-SMR-D15 Phoenix Contact 连接器外壳
1676860
Phoenix Contact
Heavy Duty Power Connectors HC-CBU Keying Socket For Coding Up To 16 Plug Connectors KEYING SOCKET FOR CODING 16 PLUG Keying element HC-CBU KEYINGPEGFORCODING16PLUGCONNECTORS
1674888
Phoenix Contact
Heavy Duty Power Connectors CK1.6-ED-1.00ST AU Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-1,00ST AU Turned 1.6 crimp contact, individual male contact, core diameter 0.75 to 1.00 mm², gold-plated CK16-ED-100STAU
1676857
Phoenix Contact
Heavy Duty Power Connectors HC-CST Keying Peg For Coding Up To 16 Plug Connectors KEYING SOCKET FOR CODING 16 PLUG Keying element HC-CST KEYINGPEGFORCODING16PLUGCONNECTORS
1772337
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D15-TFL66/M1PG16S Sleeve Housing, For Single Locking Latch, Height 66mm, With Screw Connection, 1X PG16, Lateral Cable Entry SLEEVE HOUSING LOCKING LATCH Housing for heavy-duty plug connectors HC-D 15-TFL-66/M1PG16S Heavy Duty Power Connectors HC-D15-TFL66/M1PG16S HC-D15-TFL-66/M1PG16S Phoenix Contact HC-D 系列 连接器外壳 , PG16螺纹, 适用于A10，HC-D15
1772353
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D 15-TFL-66/ M1PG16G Sleeve Housing, For Single Locking Latch, Height 66mm, With Screw Connection, 1X PG16, Straight Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-D 15-TFL-66/M1PG16G Heavy Duty Power Connectors HC-D 15-TFL-66/ M1PG16G HC-D15-TFL-66/M1PG16G
1663352
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-0,75ST AG TURNED1.6CRIMPCONTACTMALE
1672453
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.5mm Au Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 20AWG Crimp contact CK1,6-ED-0,50ST AU Turned 1.6 crimp contact, individual male contact, core diameter 0.5 mm², gold-plated CK16-ED-050STAU

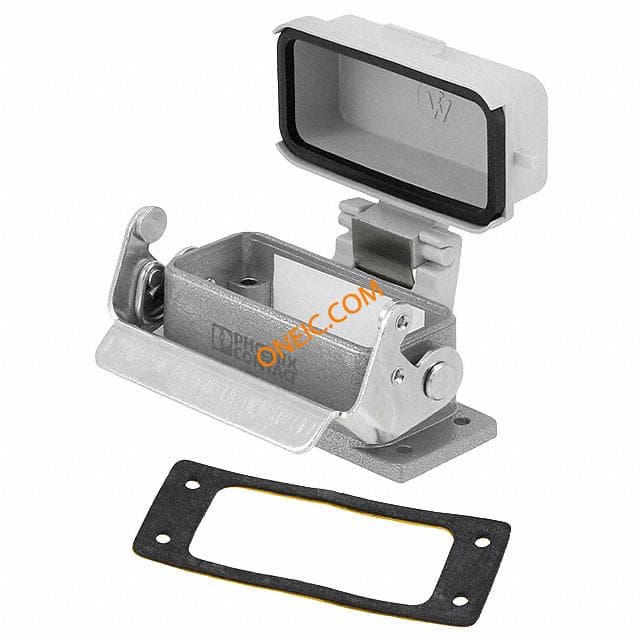

1678363
