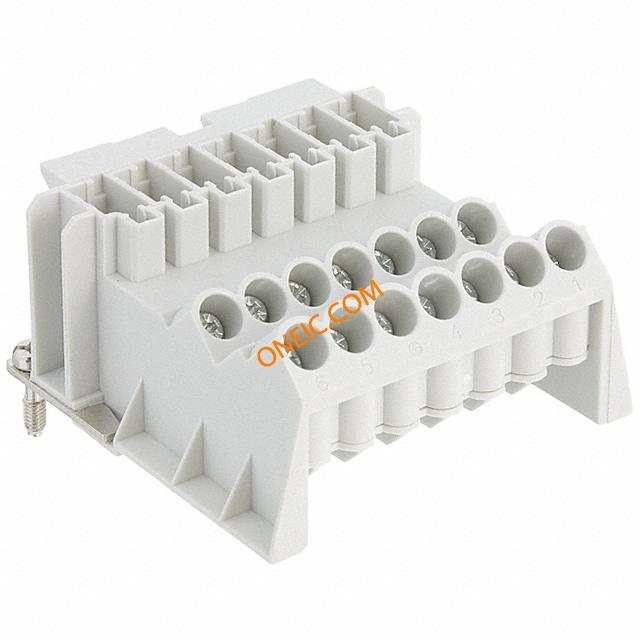

点击放大查看
1581065
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ DC-B 6-IBT-7X4-UT Conn Terminal Block F 12 POS Screw Panel Mount 25A T-BOX CONTACT 6POS Heavy Duty Power Connectors DC-B 6-IBT-7X4-UT DUPLICONT-BOX2+PETYPEB6 |
| 分类 |
商业参数
| 商标名 | DUPLICON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 25A |
| 最小输入电压 | 600V | ||
机械参数
| 尺寸 | B6 | 颜色 | Gray |
| 深度 | 26.5 | 高度 | 54 |
| 重量 | 2.180989 oz | 包装方式 | Bulk |
| 导线线规 | 12 | 端接方式 | Screw |
| 安装类型 | Panel Mount | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 2 |
| 插入力 | Female | 触头材料 | Copper |
| 壳体材料 | Polyamide (PA), Nylon | 总长度 | 54 |
| 端接样式 | Screw | 触点数 | 12 |
| 位数 | 6+Ground | 线规或范围 - AWG | 12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | DC-B | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 100°C | ||
