1414129

点击放大查看

1414129

制造商
Phoenix Contact GmbH & Co. KG
描述DIN Rail Terminal Blocks 4.2mm MINI DBL BLOCK Conn Terminal Block F 4 POS Screw ST 17.5A CONN TERM BLK FEED THRU 4.2MM Non-Fuse DIN Rail Terminal, 17.5A, 400V, Grey ,Screw Down Termination TERMINAL BLOCK, DIN, GREY Conn;TermBlk;FeedThru;DblLevel;Screw;4;26-16AWG;4.2mm;Gray;17.5A; Phoenix Contact MTTB 系列 灰色 双层接线端子块 , 17.5A, 400 V
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

交货时间20 Days子类别Connector Terminal Blocks
产品类别DIN Rail Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010
认证机构UL,CSA材料阻燃等级UL94 V-0

电气参数

电流 - UL15AUL电压300V
电流 - IEC17.5AIEC电压400V
额定电压400 V极数:2
导体绞线:1.5mm²工作电压:400V
最大额定电流17.5A最小输入电压400V

机械参数

颜色Gray深度4.2
间距1.5 mm宽度4.2 mm
高度41 mm长度44 mm
重量0.198769 oz导线线规26 → 16 AWG
端接方式Screw安装类型Straight
端子类型:Screw连接器类型:Terminal Block, DIN Rail
接触镀层:-安装样式DIN Rail
排数4触头材料:-
壳体材料Polyamide总长度44
主要材料MiniDINRail剥线长度（范围）6mm
端子宽度4.2mm插针孔直径4.2mm
端接样式Screw连接器颜色Grey
触点数4位数4
绝缘材料 - 材质Polyamide (PA), Nylon线规或范围 - AWG14-30 AWG
线规或范围 - mm²0.14-1.5mm²第一连接器安装类型:DIN Rail

产品信息

类型Terminal Block级别DoubleLevel
连接器性别F系列MTTB
行业别名MTTB 1, 5层数2
基础产品编号MTTB1,5兼容传感器最大尺寸:1.5mm²

文档与媒体

PDF 文档
1414129

相关型号

0801733

0801733

Phoenix Contact

Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINRail;Steel;Silver;7.50mm;35mm;2m

¥11.9680
详情
1205037

1205037

Phoenix Contact

Screwdrivers, Nut Drivers & Socket Drivers SM. SCREWDRIVER Hardware Tools, ScrewDriver, Bladed, Matches All Screw Terminal Blocks Up To 1.5mm Sqaure SCREWDRIVER SLOT 0.4X2.5MM 6.34" Tool, Driver ScrewDriver;160mm;0.4mm;2.5mm;80mm;30g

¥54.9440
详情
3002681

3002681

Phoenix Contact

ターミナルブロック・ツールとアクセサリ SPACER PLATE GRY Cover, Width 1.5mm, Color Blue CONN TERM BLK SPACER PLATE 4.2MM Phoenix Contact 3002681 Spacer Plate Terminal Block, Series: DP-MTTB Terminal Block Tools & Accessories SPACER PLATE GRY SpacerPlate;TermBlk;Gray;44mmL;2mmW

¥6.8000
详情
0803579

0803579

Phoenix Contact

Terminal Block Tools & Accessories 4.2mm 10x10 STRIPS CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 0803579 Marker Card Terminal Block, Series: ZBFM Connector Accessories Flat Zack Marker Sheet Polyamide White Zackmarkersheet,flat,unprinted:100-section,10strips Phoenix Contact ZBFM 系列 标记卡

¥72.0120
详情
0800886

0800886

Phoenix Contact

Terminal Block Tools & Accessories END BRACKET Connector Accessories End Bracket Polyamide Gray CONN TERM BLK END BRACKET 9.5MM EndClamp;TermBlk;Gray;48.6mmL;9.5mmW;32.8mmH Holder; grey; Width:9.5mm; TS35; Ht:32.8mm; L:48.6mm Phoenix Contact E/NS 35 N 系列 端夹

¥6.7320
详情
3001624

3001624

Phoenix Contact

Terminal Block Tools & Accessories 10POS. FIXED BRIDGE Conn Jumper M 10 POS ST CONN TERM BLK FIXED BRIDGE Phoenix Contact 3001624 Fixed Bridge Terminal Block, Series: FBRN CONNECTION BAR, FBRN-10-4N FixedBridgeBar;TermBlk;Universal;10;Silver Phoenix Contact FBRN 系列 固定桥接

¥18.1200
详情
0800268

0800268

Phoenix Contact

Terminal Block Tools & Accessories ZBFM 4/WH CONN ACC MARKER STRIP PREPRINT Zack Strip, Flat, 100-Section, Labeled Horizontally With Consecutive Numbers From 1-100, For All Terminal Blocks, Pitch 4.2mm, Color White

¥112.7440
详情
1421659

1421659

Phoenix Contact

Terminal Block Tools & Accessories END BRACKET FOR NS15 Connector Accessories End Clamp Polyamide Gray CONN TERM BLK END BRACKET 5.2MM Phoenix Contact 1421659 End Clamp Terminal Block, Series: E/MK EndClamp;TermBlk;Gray;21.2mmL;6mmW;18mmH

¥5.3040
详情

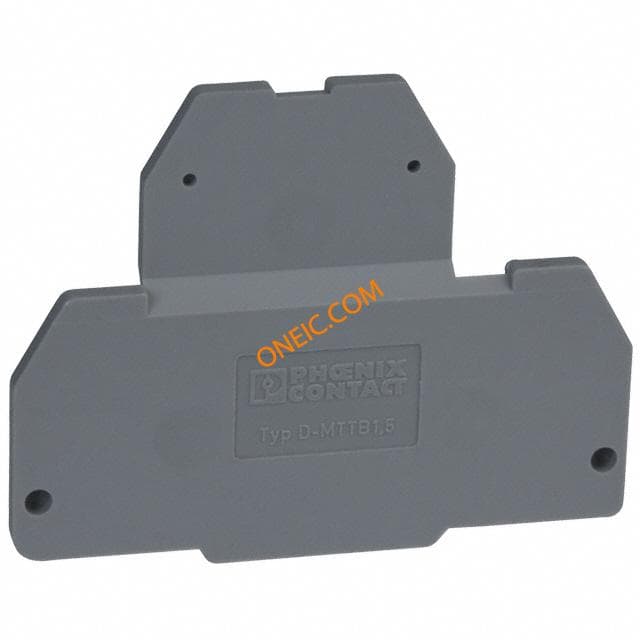

3002665
