点击放大查看

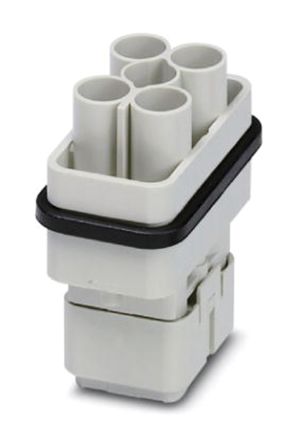

1408504
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-COM- 4/2-ESTC Conn Rectangular M 4 POS Crimp ST Cable Mount HEAVYCON CRIMP INSERT 4+2POS Heavy Duty Power Connectors HC-COM- 4/2-ESTC HC-COM-4/2-ESTC Phoenix Contact 6P+E 触点插件 , 额定电流 40A/ 400 V |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 其他名称 | HC-COM-4/2-ESTC |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 40A |
机械参数
| 深度 | 48.05 | 高度 | 22.4 |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | CK 1.6-ED, CK 4.0-ED | 安装类型 | Cable Mount |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 排数 | 2 | 插入力 | Male |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate |
| 端接样式 | Crimp | 第一触头极性 | M |
| 触点数 | 4 | 位数 | 4+2+Ground |
| 线规或范围 - AWG | 26-10 | ||
产品信息
| 类型 | Rectangular | 连接器性别 | Male |
| 极性 | 6P+E | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | 附件类型 | 触点插件 |
环境参数
| 工作温度 | -40°C ~ 100°C | ||
相关型号
1663255
Phoenix Contact
Heavy Duty Power Connectors CK4.0-ED-4.00ST AG Contact PIN Crimp ST Cable Mount TURNED 4.0 CRIMP CONTACT Crimp contact CK4,0-ED-4,00ST AG Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 4.00mm, Ag CK40-ED-400STAG
1663349
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.5mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 20AWG Crimp contact CK1,6-ED-0,50ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.5mm Ag TURNED1.6CRIMPCONTACTMALE TURNED 1.6 CRIMP CONTACT MALE
1663365
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Phoenix Contact 1663365 Crimp Contact Terminal Block, Series: CK Crimp contact CK1,6-ED-1,00ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag TURNED1.6CRIMPCONTACTMALE Phoenix Contact CK 系列 压接触点
1884089
Phoenix Contact
ヘビーデューティパワーコネクタ CK1.6-ER-1.50ST AG Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 20-16AWG Crimp contact CK1,6-ER-1,50ST AG Heavy Duty Power Connectors CK1.6-ER-1.50ST AG Rolled male contact, single contacts, silver-plated, 0.5 mm² ... 1.5 mm² RolledMaleContact;SingleContacts;SilverPlated
1663268
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 4.0 Crimp Male Diam. 6.00mm, Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 10AWG Crimp contact CK4,0-ED-6,00ST AG Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 6.00mm, Ag CK40-ED-600STAG

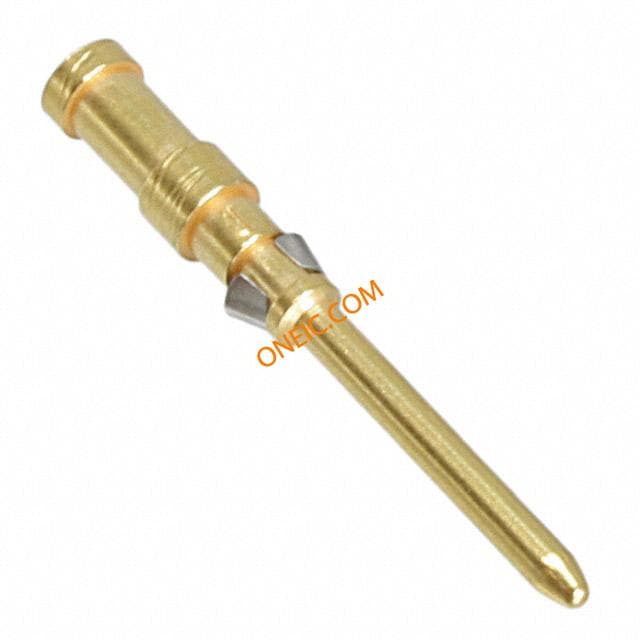

1674901
