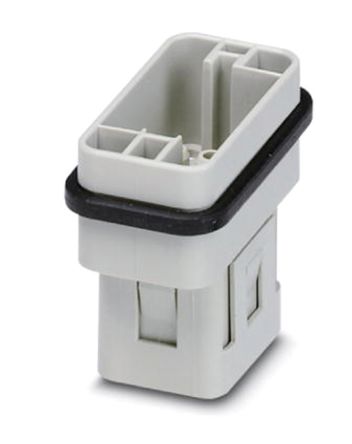

1408481
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-COM- 8-ESTC Conn Rectangular M 8 POS Crimp ST Cable Mount HEAVYCON CRIMP INSERT 8POS HC-COM-8-ESTC Phoenix Contact 8P+E 公插 触点插件 , 额定电流 16A/ 500 V |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 其他名称 | HC-COM-8-ESTC |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 19A |
| 最小输入电压 | 500V | ||
机械参数
| 深度 | 38.5 | 高度 | 22.4 |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | CK 2.5-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate | 总长度 | 41.6 |
| 端接样式 | Crimp | 第一触头极性 | M |
| 触点数 | 8 | 位数 | 8+Ground |
| 线规或范围 - AWG | 20-12 | ||
产品信息
| 类型 | Rectangular | 连接器性别 | Male |
| 极性 | 8P+E | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | 附件类型 | 触点插件 |
环境参数
| 工作温度 | -40°C ~ 100°C | ||
