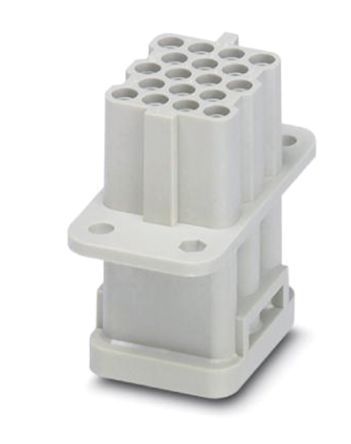

1408478

点击放大查看

1408478

制造商
Phoenix Contact GmbH & Co. KG
描述ヘビーデューティパワーコネクタ HC-COM-17-EBUC Conn Rectangular SKT 17 POS Crimp ST Cable Mount HEAVYCON CRIMP INSERT 17POS Heavy Duty Power Connectors HC-COM-17-EBUC HC-COM-17-EBUC Phoenix Contact 17P+E 触点插件 , 额定电流 10A/ 200 V
分类
连接器解决方案重载连接器重载连接器（扩展）
对参数有疑问？问 AI 助手

商业参数

商标名HEAVYCON其他名称HC-COM-17-EBUC
标准包装数量1工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

额定电压600V最大额定电流19.5A
最小输入电压200V

机械参数

深度36.7高度22.4
包装方式Bulk端接方式Crimp
触头类型CK 1.6-ED安装类型Straight
连接器类型Insert without Contacts接触镀层Silver
插入力Female触头材料Copper Alloy
壳体材料Polycarbonate总长度41.6
端接样式Crimp第一触头极性SKT
触点数17位数17+Ground
线规或范围 - AWG26-14

产品信息

类型Rectangular连接器性别Female
极性17P+ECAD图纸3D CAD 模型
产品子类型Inserts附件类型触点插件

环境参数

工作温度-40°C ~ 100°C

文档与媒体

PDF 文档
1408478

相关型号

1672440

1672440

Phoenix Contact

Heavy Duty Power Connectors CK1.6-ED-0.75BU AU Sensor Cable, Straight Female Connector M 8, 3POS, Cable Length 1.5m CRIMP CONTACT SOCKET 18AWG Crimp contact CK1,6-ED-0,75BU AU Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.75mm Au CK16-ED-075BUAU

¥10.4910
详情
1663446

1663446

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 2.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ED-2,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Ag TURNED1.6CRIMPCONTACTFEMALE

¥5.1680
详情
1884115

1884115

Phoenix Contact

ヘビーデューティパワーコネクタ Rolled Fem Cont. Ag, 0.5mm-1.5mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 20-16AWG Crimp contact, 1.6mm, female Crimp contact CK1,6-ER-1,50BU AG Heavy Duty Power Connectors Rolled Fem Cont. Ag, 0.5mm-1.5mm CK16-ER-150BUAG Phoenix Contact VC-D 系列 母座 滚压触点 , 适用于大负荷电源连接器

¥5.0646
详情
1663394

1663394

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 0.14-0.37mm Ag Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 26-22AWG Crimp contact CK1,6-ED-0,37BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.14-0.37mm Ag CK16-ED-037BUAG

¥5.5080
详情
1884128

1884128

Phoenix Contact

ヘビーデューティパワーコネクタ Rld. 1.6 Crimp Fem Cont. Diam. 0.5 mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 26-20AWG Crimp contact CK1,6-ER-0,50BU AG Heavy Duty Power Connectors Rld. 1.6 Crimp Fem Cont. Diam. 0.5 mm CK16-ER-050BUAG

¥5.0646
详情
1885004

1885004

Phoenix Contact

ヘビーデューティパワーコネクタ Fiber Opt Fem Cont POF, for VC-D Insert Contact PIN/SKT Crimp ST Cable Mount FIBER OPTIC FEMALE CONTACT POF POF female contact CK1,6-ED-BU-POF Heavy Duty Power Connectors Fiber Opt Fem Cont POF, for VC-D Insert CK16-ED-BU-POF

¥88.6040
详情
1663404

1663404

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 0.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 0.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 20AWG Crimp contact CK1,6-ED-0,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.5mm Ag TURNED1.6CRIMPCONTACTFEMALE

¥5.5080
详情
1884131

1884131

Phoenix Contact

ヘビーデューティパワーコネクタ Rolled Fem Cont. Ag, 1.5mm-2.5mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ER-2,50BU AG Heavy Duty Power Connectors Rolled Fem Cont. Ag, 1.5mm-2.5mm CK16-ER-250BUAG Phoenix Contact 母座 压接触点 , 适用于HC-D 到 HC-R，VC-D 到 VC-R

¥5.2360
详情
1663433

1663433

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 1.5mm Ag Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 16AWG Crimp contact CK1,6-ED-1,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 1.5mm Ag TURNED1.6CRIMPCONTACTFEMALE

¥5.5080
详情
1663417

1663417

Phoenix Contact

Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.75mm Ag Panel Mounting Frame, Without Securing Screws, Round Cutout, One-Part CRIMP CONTACT SOCKET 18AWG Crimp contact CK1,6-ED-0,75BU AG TURNED1.6CRIMPCONTACTFEMALE

¥5.5080
详情
1674930

1674930

Phoenix Contact

ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 1.5mm Au Contact PIN Crimp ST Cable Mount CRIMP CONTACT SOCKET 16AWG Crimp contact CK1,6-ED-1,50BU AU Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 1.5mm Au TURNED1.6CRIMPCONTACTFEMALE

¥10.4910
详情
1674943

1674943

Phoenix Contact

Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.75-1.00mm Au Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 18AWG Crimp contact CK1,6-ED-1,00BU AU CK16-ED-100BUAU

¥11.2200
详情

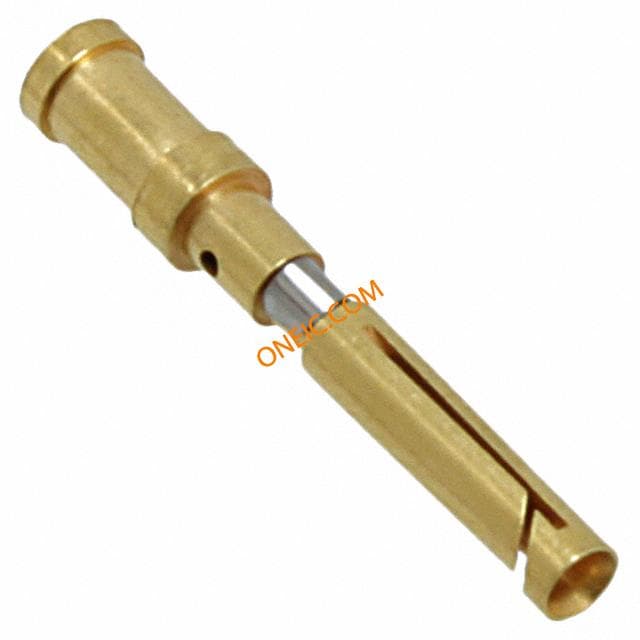

1674969
