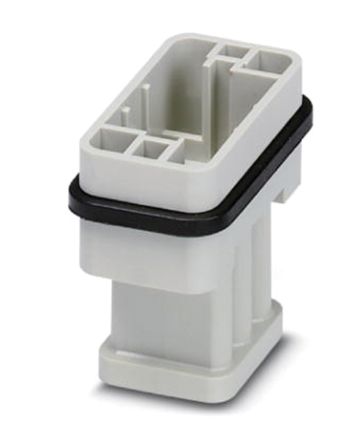

1408465
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-COM-17-ESTC Conn Rectangular M 17 POS Crimp ST Cable Mount HEAVYCON CRIMP INSERT 17POS HC-COM-17-ESTC Phoenix Contact 17P+E 公插 触点插件 , 额定电流 10A/ 200 V |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 其他名称 | HC-COM-17-ESTC |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 19.5A |
| 最小输入电压 | 200V | ||
机械参数
| 深度 | 38.7 | 高度 | 25.6 |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | CK 1.6-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 排数 | 5 | 插入力 | Male |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate |
| 总长度 | 44.8 | 端接样式 | Crimp |
| 第一触头极性 | M | 触点数 | 17 |
| 位数 | 17+Ground | 线规或范围 - AWG | 26-14 |
产品信息
| 类型 | Rectangular | 连接器性别 | Male |
| 极性 | 17P+E | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | 附件类型 | 触点插件 |
环境参数
| 工作温度 | -40°C ~ 100°C | ||
