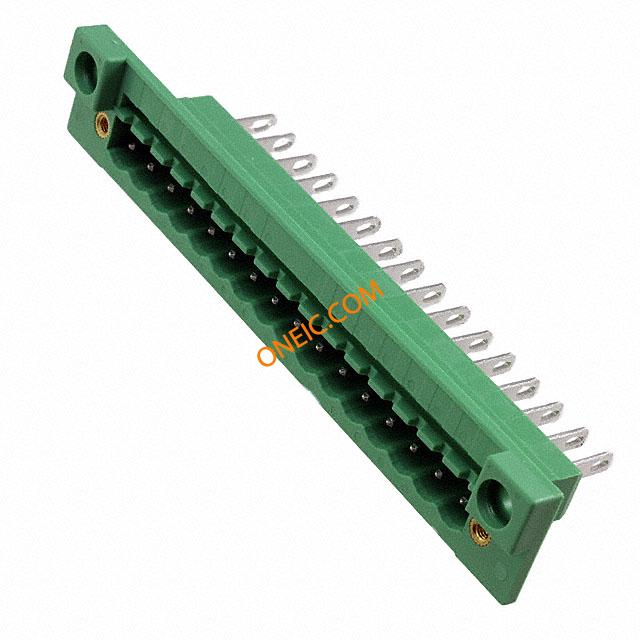

点击放大查看
0710316
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks DFK-MSTB 2 5/16-GF-5 CONN HEADER 16POS 5.08MM PNL MNT Conn Shrouded Header HDR 16 POS 5.08mm Solder Lug ST Wall Mount Conn;TermBlk;Header;16;5.08mm;24-12AWG;Green;12A;320V(Nom) Phoenix Contact COMBICON DFK-MSTB 系列 5.08mm节距 16路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Headers | 交货时间 | 28 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
机械参数
| 颜色 | Green | 间距 | 0.200" (5.08mm) |
| 宽度 | 4.000" (101.60mm) | 高度 | 17.5 mm |
| 重量 | 0.553448 oz | 方向 | 直 |
| 接触镀层 | Tin | 安装样式 | Panel / Box - Feed Through |
| 排数 | 1 | 面板厚度 | 0.020 ~ 0.158" (0.5 ~ 4.0mm) |
| 触头材料 | 镀锡 | 面板安装类型 | Screw Mount - Front Flange |
| 端接排数 | 焊接 | 触点数 | 16 |
| 线规或范围 - AWG | 24-12 | 后面板接线方式 | Quick Connect - 0.110" (2.80mm), Solder Eyelet |
| 前面板接线方式 | Header, Male Pins | ||
产品信息
| 类型 | Wire to Wire | 系列 | DFK-MSTB |
| CAD图纸 | 3D CAD 模型 | 行业别名 | DFK-MSTB 2, 5/16-GF-5, 08 |
| 层数 | 1 | 每层位数 | 16 |
