点击放大查看
0707882
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks DFK-MSTB 2.5/ 2-G-5,08 WW(1X1) TERM BLOCK Phoenix Contact COMBICON DFK-MSTB 系列 2路 5.08mm节距 PCB 接线端子块 , 12A |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 其他名称 | DFK-MSTB 2 5/ 2-G-5 08 WW(1X1) | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 宽度 | 1.200" (30.48mm) | 接触镀层 | Tin |
| 安装样式 | Panel / Box - Feed Through | 面板厚度 | 0.020 ~ 0.158" (0.5 ~ 4.0mm) |
| 面板安装类型 | Screw Mount - Front Flange | 触点数 | 2 |
| 后面板接线方式 | Wire Wrap Terminals | 前面板接线方式 | Header, Male Pins |
产品信息
| 类型 | 印刷电路板连接器 | 系列 | DFK-MSTB |
| 产品特性 | Lock Opening | 层数 | 1 |
| 每层位数 | 2 | ||
文档与媒体
相关型号
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL

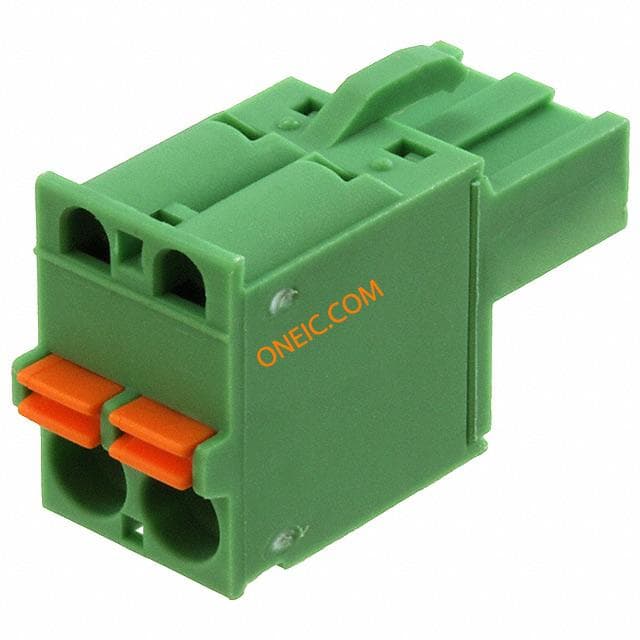

1902110
Phoenix Contact
プラグ着脱可能ターミナルブロック FKCT 2.5/2-ST-5.08 Conn Terminal Block F 2 POS 5.08mm ST Cable Mount 12A TERM BLOCK PLUG 2POS STR 5.08MM Printed-circuit board connector FKCT 2,5/ 2-ST-5,08 Pluggable Terminal Blocks FKCT 2.5/2-ST-5.08 FKCT2.5/2-ST-5.08

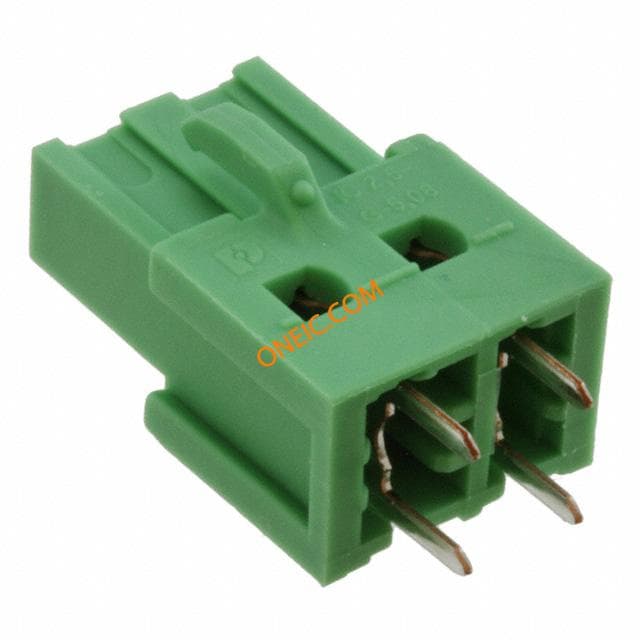

1785942
Phoenix Contact
Pluggable Terminal Blocks ICV 2 5/ 2-G-5 08 Conn Wire to Board HDR 2 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,2way ICV25/2-G-508 Phoenix Contact COMBICON ICV 系列 5.08mm节距 2路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A , 通孔
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
0708263
Phoenix Contact
Terminal Block Tools & Accessories HDR HDWR FOR 5.08mm ORDER QTY 2 PER HDR Connector Accessories Screw Set HDWR SET 3X10 SCREW/WASHER/NUT
5030172
Phoenix Contact
Terminal Block Tools & Accessories LOCKING LATCH Connector Accessories Locking Latch Red LOCKING LATCH RED MSTB PCB terminal stop notches DFK-MSTB-R
1786404
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM Phoenix Contact IC Series 5.08mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 12A Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON IC 系列 5.08mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A , 通孔
