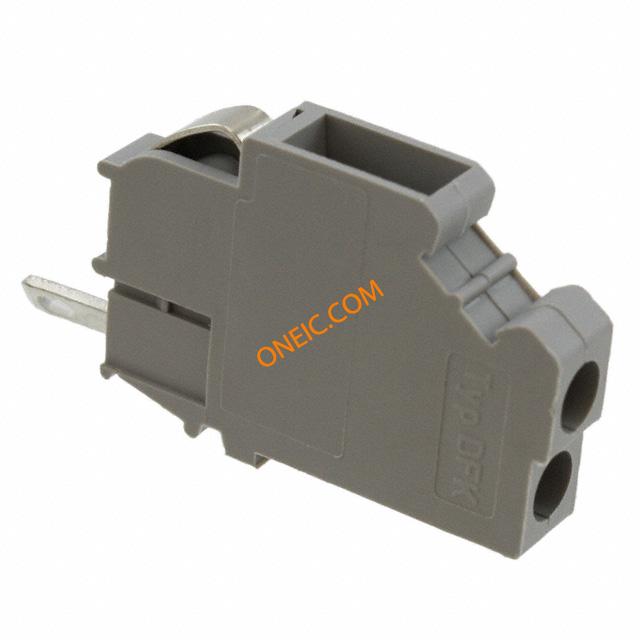

0706016
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Fixed Terminal Blocks DFK 2.8 Conn Feed-Thru 2 POS Solder Lug ST Wall Mount 17.5A TERM BLK FEED-THRU (1.5MM METAL) |
| 分类 |
商业参数
| 产品 | Fixed Terminal Blocks | 交货时间 | 28 Days |
| 商标名 | COMBICON Power | 子类别 | Connector Terminal Blocks |
| 产品类别 | Fixed Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 - UL | 15A | UL电压 | 300V |
| 额定电压 | 400 V | 最大额定电流 | 17.5 A |
| 最小输入电压 | 400V | ||
机械参数
| 颜色 | Gray | 深度 | 37 |
| 宽度 | 0.240" (6.10mm) | 高度 | 21 |
| 重量 | 0.189844 oz | 导线线规 | 12-28 AWG |
| 端接方式 | Solder Lug | 安装类型 | Wall Mount |
| 安装样式 | Free Hanging | 排数 | 1 |
| 面板厚度 | 0.059" (1.50mm) | 壳体材料 | Polyamide |
| 面板安装类型 | Snap Fit | 端接样式 | Screw |
| 触点数 | 2 | 线规或范围 - mm² | 12 |
| 后面板接线方式 | Quick Connect - 0.110" (2.80mm), Solder Eyelet | 前面板接线方式 | Bolt/Screw Clamp - Wire Entry Parallel to Panel |
产品信息
| 类型 | Feed-Thru | 行业别名 | DFK-2, 8 |
| 层数 | 1 | 每层位数 | 1 |
