点击放大查看

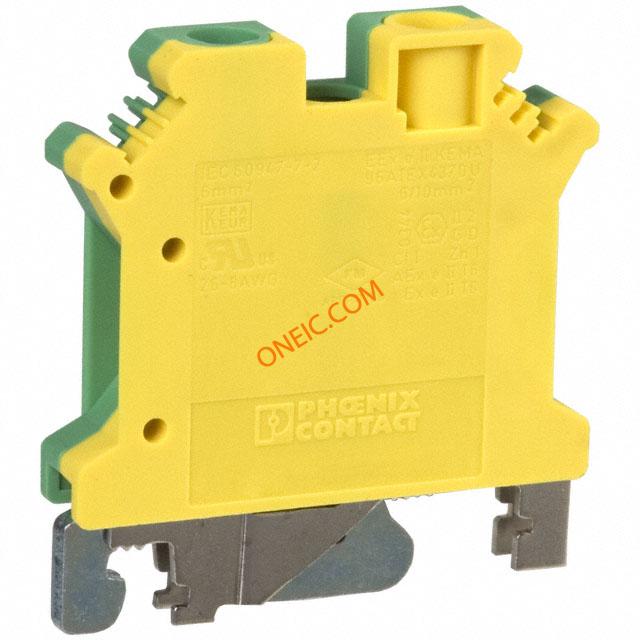

0442079
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks 8.2mm UNIV. GRND Conn Terminal Block F 2 POS Screw ST CONN TERM BLK GROUNDING 8.2MM Earth terminal,6sq.mm 57A TERMINAL BLOCK, DIN, 6MM, GRN/YEL Conn;TermBlk;DINRail;Grd;Screw;.2-10sq.mm;24-AWG;8.2mmW;Green-YL Splice terminal: rail; ways:1; terminals:2; yellow-green Phoenix Contact 绿色/黄色 2 路 接地端子块 USLKG 6 N, 螺钉拧紧端接 24 → 8 AWG, 长 42.5mm |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Terminal Blocks |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 750 V | 极数 | :1 |
| 导体绞线 | :6mm² | 连接器阻抗 | rail |
| 最大额定电流 | 57A | ||
机械参数
| 颜色 | Green, Yellow | 深度 | 8.2 |
| 间距 | :8.2mm | 宽度 | 8.2mm |
| 高度 | 54.5mm | 长度 | 42.5mm |
| 重量 | 1 oz | 导线线规 | 24 → 8 AWG |
| 端接方式 | Screw | 安装类型 | Straight |
| 端子类型 | :Screw | 连接器类型 | :Terminal Block, DIN Rail |
| 接触镀层 | :- | 安装导轨 | TS32, TS35 |
| 安装样式 | DIN Rail | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 总长度 | 42.5 | 包装数量 | 50 |
| 剥线长度（范围） | 10mm | 端子宽度 | 8.2mm |
| 端接样式 | Screw | 连接器颜色 | :Yellow / Green |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 8-26 AWG |
| 线规或范围 - mm² | 0.2-10mm² | 第一连接器安装类型 | :DIN Rail |
| 每排/每行位置数 | 2 | ||
产品信息
| SPG | 50 | 类型 | Terminal Block |
| 连接器性别 | F | 系列 | :USLKG 6 |
| 单元数量 | 1 | 行业别名 | USLKG 6 N |
| 层数 | 1 | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
1052002
Phoenix Contact
Unspecified Tools & Accessories 8.2mm BLANK STRIPS Terminal Block Tools & Accessories 8.2mm BLANK STRIPS Connector Accessories Zack Marker Strip 10 Section Unprinted For Individual Labeling With M-PEN White Polyamide CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1052002 Marker Strip Terminal Block, Series: ZB ZACK STRIP, UNPRINTED ZBMarkingStrip;TermBlk;8.2mmpitch;Blank Marker; Width:8mm; for labelling by user Phoenix Contact ZB 系列 标记条
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
0825011
Phoenix Contact
Terminal Block Tools & Accessories ZB 8 CUS TERM BLOCK MARKING LABEL Terminal Block Tools & Accessories ZB 8 CUS 1 strip is 1 piece ZB8CUS
0818072
Phoenix Contact
Unspecified Tools & Accessories UC-TM 8 UNICARD 56 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=56 LABELS Terminal Block Tools & Accessories UC-TM 8 UNICARD 56 SECTION MarkerCard;TermBlk;8.2mm;56labelspercard;white MarkerforTerminalBlocks;Sheet;White;Unlabeled;UC-TM8 Phoenix Contact UC-TM 8 系列 端子标记
1206586
Phoenix Contact
取り付け用金具類 NS 35/15 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware NS 35/15 ZN UNPERF 2000MM DINrail,material:Galvanized,unperforated,2MeterLength DIN 导轨 顶帽式, NS35 无孔型, 2000mm x 35mm x 15mm
1007235
Phoenix Contact
Terminal Block Tools & Accessories SBS 8: UNBEDRUCKT Connector Accessories Marker Card Cellulose Acetate White MARKER CARDS TERM BLOCK WHITE MARKERCARDSFORTERMINALBLOCKSWHITE
1201895
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Copper, Unperforated, 1.5mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35MMX15MM UNSLOT 2M NS35/15CUUNPERF2000MM
1201714
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Unperforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M DIN rail,unperforated,steel,35x15x2000mm DINRail;Steel;Chromated;15mm;35mm;2Meterlength
0801704
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35X7.5MM UNSLOT ALUM 2M Din Rail, Material Aluminum, Unperforated, Height 7.5mm, Width 35mm, Length 2 M DINRail,Aluminum,unperforated,height7.5mm,width35mm,2meterslength
0801762
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35MMX7.5MM UNSLOT 2M Din Rail, Material Copper, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2 M DINrail,Copper,unperforated,height7.5mm,width35mm,eachpiece2MTR
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
1201730
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Perforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35MMX15MM SLOTTED 2M MountingRail,Perforated,35x15mm,eachpieceis2meters
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength
1201002
Phoenix Contact
Mounting Hardware NS32 PERF 2 METER PRICED PER METER G-Profile DIN Rail, Material Steel, Perforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32MMX15MM SLOTTED 2M Accessories, Zack strip, unprinted, strips with 10 labels for individual labeling with M-PEN or CMS system, for terminal block width: 6.2 mm, color: white G-profileDINrail,Steel,perforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 多孔型, 2000mm x 32mm x 15mm
1206434
Phoenix Contact
Mounting Hardware NS 35/ 7,5 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM UNSLOT 2M NS35/75ZNUNPERF2000MM

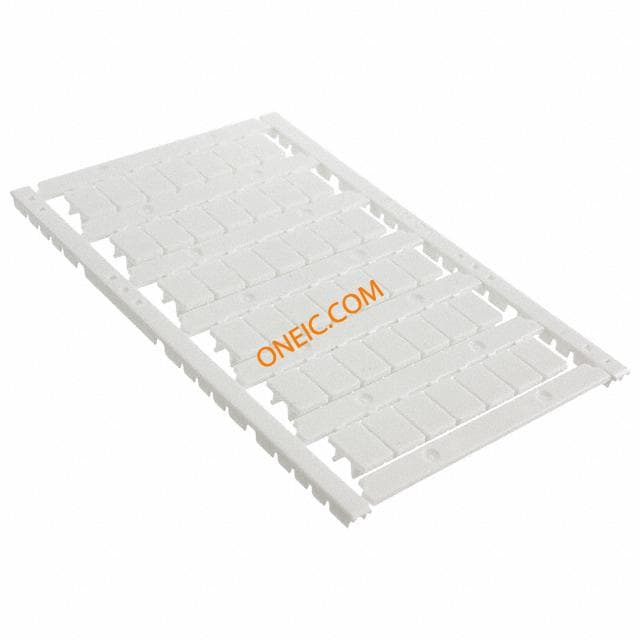

0828740
