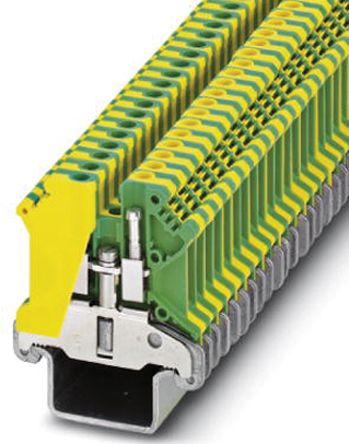

点击放大查看
0441517
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks USLKG 5-1 GND TERM BLOCK 10-26AWG DIN RAIL Conn Ground Terminal Blocks F 2 POS Screw ST Conn;TermBlk;DINRail;Ground;Screw;.2-6sq.mm;24-10AWG;6.2mmW;Green-YL Phoenix Contact USLKG 5-1 系列 绿色，黄色 馈通端子块 |
| 分类 |
商业参数
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
机械参数
| 颜色 | Green, Yellow | 宽度 | 6.2 mm |
| 长度 | 42.5 mm | 导线线规 | 24 |
| 安装样式 | DIN Rail | 剥线长度（范围） | 8mm |
| 端子宽度 | 6.2mm | 端接排数 | 螺钉 |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-26 AWG | 线规或范围 - mm² | 0.2-6mm² |
产品信息
| 类型 | Ground, Earth | 系列 | USLKG 5-1 |
| 叠层数 | 单层 | 层数 | 1 |
