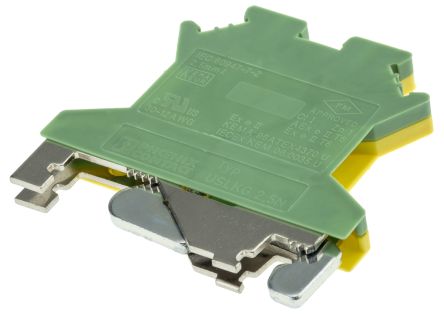

点击放大查看
0441119
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks 5.2mm UNIV. GRND. Conn Terminal Block F 2 POS Screw ST CONN TERM BLK GROUNDING 5.2MM DIN rail contact earth terminal,2.5sq.mm TERMINAL BLOCK, DIN, 2.5MM, GRN/YEL Conn;TermBlk;DINRail;Grd;Screw;.2-4sq.mm;24-12AWG;5.2mmW;Green-YL Splice terminal: rail; ways:1; terminals:2; yellow-green; 800V Phoenix Contact 绿色/黄色 2 路 接地端子块 DIN 导轨, 螺钉拧紧端接 24 → 12 AWG, 长 42.5mm |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Terminal Blocks |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 750 V | 极数 | :1 |
| 导体绞线 | :2.5mm² | 连接器阻抗 | rail |
| 最大额定电流 | 24A | ||
机械参数
| 颜色 | Green, Yellow | 深度 | 5.2 |
| 间距 | :5.2mm | 宽度 | 5.2mm |
| 高度 | 49.5mm | 长度 | 42.5mm |
| 重量 | 0.584207 oz | 导线线规 | 24 → 12 AWG |
| 端接方式 | Screw | 基体材料 | polyamide |
| 安装类型 | Straight | 端子类型 | :Screw |
| 连接器类型 | :Terminal Block, DIN Rail | 接触镀层 | :- |
| 安装导轨 | TS32, TS35 | 安装样式 | DIN Rail |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | Polyamide | 总长度 | 42.5 |
| 包装数量 | 50 | 剥线长度（范围） | 7mm |
| 端子宽度 | 5.2mm | 端接样式 | Screw |
| 连接器颜色 | :Yellow / Green | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-30 AWG | 线规或范围 - mm² | 0.2-4mm² |
| 第一连接器安装类型 | :DIN Rail | 每排/每行位置数 | 2 |
产品信息
| SPG | 50 | 类型 | Terminal Block |
| 连接器性别 | F | 系列 | :USLKG 2.5 |
| 单元数量 | 1 | 行业别名 | USLKG 2, 5 N |
| 层数 | 1 | ||
