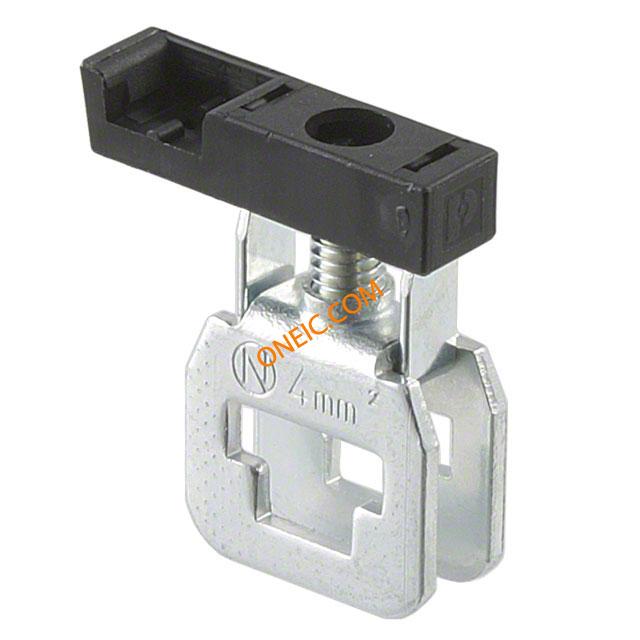

0421032
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Fixed Terminal Blocks AKG 4 BK Conn Power Terminal Blocks F Screw ST 41A TERM BLK CONNECT W/O CAP BLACK Conn;TermBlk;BusbarConnecting;Screw;20-10AWG;Black;41A;7mmW |
| 分类 |
商业参数
| 产品 | Fixed Terminal Blocks | 交货时间 | 28 Days |
| 子类别 | Connector Terminal Blocks | 产品类别 | Fixed Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 300V |
| 电流 - IEC | 41A | 最大额定电流 | 41 A |
机械参数
| 颜色 | Black | 深度 | 7 |
| 宽度 | 7 mm | 长度 | 0.925" (23.50mm) |
| 重量 | 0.195136 oz | 导线线规 | 20 |
| 端接方式 | Screw | 外壳颜色 | Black |
| 安装类型 | Straight | 安装样式 | DIN Rail |
| 排数 | 1 | 壳体材料 | Polyamide |
| 总长度 | 23.5 | 剥线长度（范围） | 16mm |
| 端子宽度 | 7.0mm | 端接样式 | Screw |
| 交叉孔直径 | 0.5-4sq-mm | 位数 | 1 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 10-20 AWG |
| 线规或范围 - mm² | 0.5-6mm² | ||
产品信息
| 类型 | Power Terminal Blocks | 连接器性别 | F |
| 系列 | AKG | 行业别名 | AKG 4 BK |
| 层数 | 1 | ||
