点击放大查看

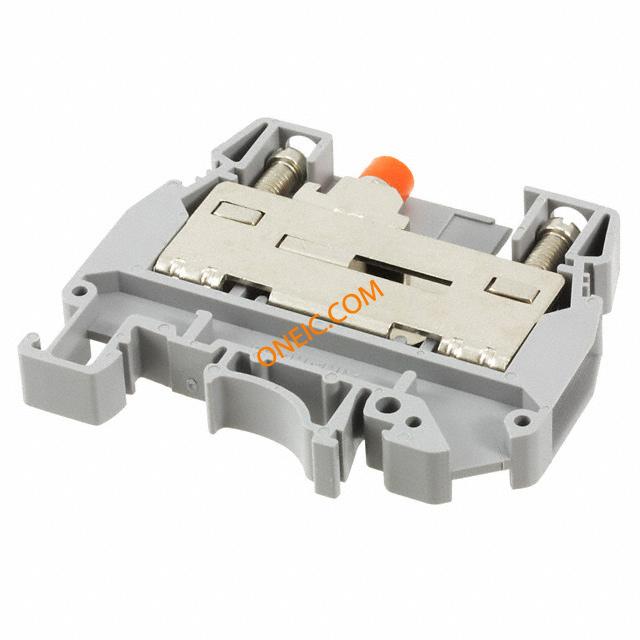

0313085
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UGSK/S + GS TERM BLOCK W/SLIDE 8.2MM Conn Terminal Block F 2 POS Screw ST 57A Componentterminalblock |
| 分类 |
商业参数
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-2 |
电气参数
| 电流 - IEC | 41A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 57 A |
机械参数
| 颜色 | Gray | 宽度 | 8.2 mm |
| 长度 | 61 mm | 导线线规 | 20 |
| 剥线长度（范围） | 11mm | 端子宽度 | 8.2mm |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 20-8 | 线规或范围 - mm² | 0.5-10mm² |
产品信息
| 类型 | Disconnect | 断开类型 | Switch, Slide |
| 层数 | 1 | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
1052002
Phoenix Contact
Unspecified Tools & Accessories 8.2mm BLANK STRIPS Terminal Block Tools & Accessories 8.2mm BLANK STRIPS Connector Accessories Zack Marker Strip 10 Section Unprinted For Individual Labeling With M-PEN White Polyamide CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1052002 Marker Strip Terminal Block, Series: ZB ZACK STRIP, UNPRINTED ZBMarkingStrip;TermBlk;8.2mmpitch;Blank Marker; Width:8mm; for labelling by user Phoenix Contact ZB 系列 标记条
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0202138
Phoenix Contact
Terminal Block Tools & Accessories 10 POSITION BRIDGE Conn Jumper M 10 POS ST CONN TERM BLK INSERTION BRIDGE Phoenix Contact 0202138 Insertion Bridge Terminal Block, Series: EB InsertionBridge;TermBlk;Universal;10;Gray;Angled Phoenix Contact EB 系列 10 极跳片
0305381
Phoenix Contact
DIN Rail Terminal Blocks PSBJ-GSK/S BK CONN TEST Phoenix Contact
0305394
Phoenix Contact
DIN Rail Terminal Blocks PSBJ-GSK/S TRANSPARENT CONN TEST Conn Female Test Connector F 1 POS ST 1 Port Phoenix Contact
0304227
Phoenix Contact
Terminal Block Tools & Accessories ATS-GSK PARTITION PLATE GRAY Partition Plate, For Visual And Electrical Separation Of Terminal Groups, Width 0.8 Mm
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
1007235
Phoenix Contact
Terminal Block Tools & Accessories SBS 8: UNBEDRUCKT Connector Accessories Marker Card Cellulose Acetate White MARKER CARDS TERM BLOCK WHITE MARKERCARDSFORTERMINALBLOCKSWHITE
0202154
Phoenix Contact
Terminal Block Tools & Accessories EB 2- 8 2P INSERTION BRIDGE Insertion Bridge, 2-Pos., Fully Insulated TERM BLOCK INSERTION BRIDGE 2POS InsertionBridge;TermBlk;Universal;2;Gray;Angled
3022218
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories Snap-on End Bracket Polyamide Gray END BRACKET FOR 35 MM DIN RAIL Phoenix Contact 3022218 End Bracket Terminal Block, Series: CLIPFIX End bracket CLIPFIX 35 EndBracket;TermBlk;SnapOn;57mmL;9.5mmW
1201714
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Unperforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M DIN rail,unperforated,steel,35x15x2000mm DINRail;Steel;Chromated;15mm;35mm;2Meterlength
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength
1201002
Phoenix Contact
Mounting Hardware NS32 PERF 2 METER PRICED PER METER G-Profile DIN Rail, Material Steel, Perforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32MMX15MM SLOTTED 2M Accessories, Zack strip, unprinted, strips with 10 labels for individual labeling with M-PEN or CMS system, for terminal block width: 6.2 mm, color: white G-profileDINrail,Steel,perforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 多孔型, 2000mm x 32mm x 15mm
3000735
Phoenix Contact
DIN Rail Terminal Blocks KSSI 4-8 Conn Jumper M 4 POS ST 4POS SHORT-CIRCUIT CONN Short-circuit connector KSSI 4-8 KSSI4-8 Phoenix Contact
1206434
Phoenix Contact
Mounting Hardware NS 35/ 7,5 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM UNSLOT 2M NS35/75ZNUNPERF2000MM
1201756
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN rail, Deep Drawn, High Profile DIN RAIL 35X15MM UNSLOT ALUM 2M NS35/15-ALUNPERF2000MM(Suppliedin2meterlengthspriceper2meters)

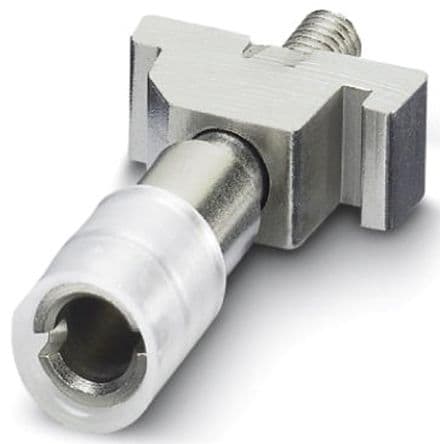

0305378
