点击放大查看

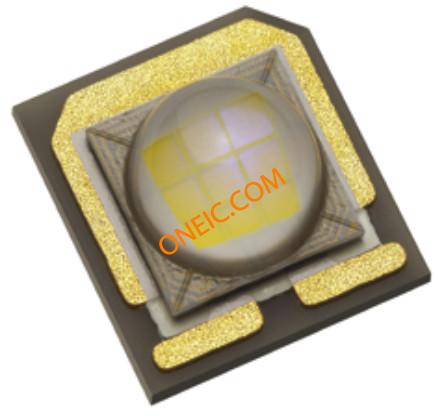

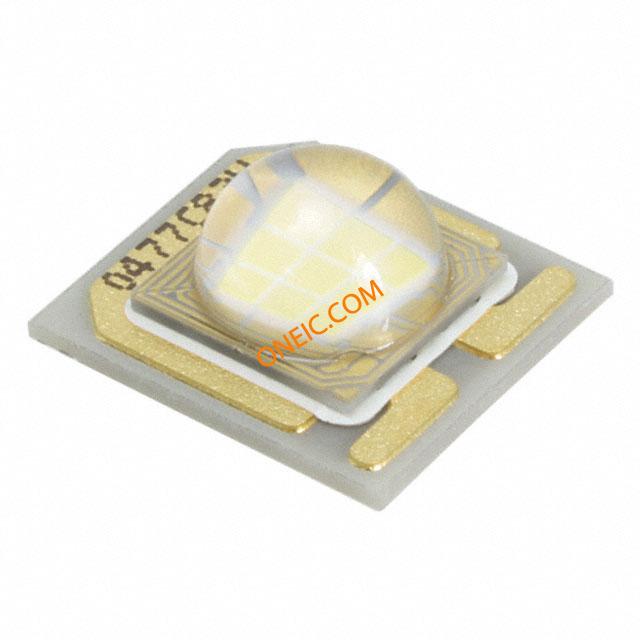

LXS8-PW30
| 制造商 | |
| 描述 | LED LUXEON S SMD Luxeon S LED White 3000K 1390lm+ 80Ra+ High Power LEDs - White Warm White, 3000K 1250lm, 700mA |
| 分类 |
商业参数
| 商标名 | LUXEON | 标准包装数量 | 500 |
合规参数
| RoHS | Compliant | ||
电气参数
| 电压 | 29V | 波长 | 3045K |
| 光通量 | 1390 lm | 视角 | 115 ° |
| 输出电流 | 700mA | 驱动电路 | Yes |
| 供电电压 | 25.6V | LED正向电流 | 700 mA |
| LED正向电压 | 29 V | 最大额定电流 | 900mA |
| 发光面（LES） | 8.06mm Diameter | 光效 @ 测试电流 | 78 lm/W |
| 光通量 @ 85°C, 测试电流 | 1390 lm | ||
机械参数
| 颜色 | White, Warm | 宽度 | 8.72 mm |
| 高度 | 6.09 mm | 长度 | 8.72 mm |
| LED颜色 | White | 包装方式 | Tray |
| 灯颜色 | 3000 K | 透镜样式 | Circular |
| 安装类型 | PCB Surface Mount | 连接器类型 | No |
| 安装样式 | SMD/SMT | 引脚数 | 3 |
| 连接器用途 | No | 磁芯材质 | InGaN |
| 尺寸/外形 | 13.87mm L x 12.87mm W | 背景色 | 3000K |
| 照明颜色 | Warm White | 显色指数（CRI） | 80 |
产品信息
| 类型 | Chip On Board (COB) | 系列 | LUXEON S1000 |
| 色温 (K) | 3000K | 产品特性 | Lens - Dome |
| 配置 | Square | LED数量 | 1 |
| 每IC通道数 | Square | ||
环境参数
| 工作温度 | - 40 C | 封装热阻 | 1.3°C/W JC |
| 光通量 @ 电流/温度 | 1390 lm | ||
文档与媒体
相关型号
RACD20-700
RECOM Lighting
LED Drivers Power Supplies 20W AC/DC LED PW SUP 90-264Vin 6-29Vout AC/DC-CONVERTER AC/DC CONVERTER 700mA 20W LED SUPPLY CC AC/DC 6-29V 700MA LED Power Supply,LED Driver,700mA,20W AC/DC LED POWER SUPPLY, REG; 20WATT LED driver, RACD20-700, Recom Recom LED 驱动器 , 6 → 29V, 0.7A, 20W
RACD30-700
RECOM Lighting
LED Drivers Power Supplies CONV AC/DC 0.7AOUT 110-240VIN 10-43VOUT LED DRVR 12Segment 6-Pin AC/DC CONVERTER 700mA 30W LED SUPPLY CC AC/DC 10-43V 700MA LED Power Supply,LED Driver,700mA,30W LED driver, RACD30-700, Recom Recom LED 驱动器 , 10 → 43V, 0.7A, 30W
RACT20-700-US
RECOM Lighting
LED Power Supplies 90-135VIN 15-28VOUT LED DRIVER AC/DC AC/DC-CONVERTER LED SUPPLY CC AC/DC 15-28V 700MA LED Drivers Power Supplies 90-135VIN 15-28VOUT LED DRIVER AC/DC LEDDr Module 700mA 16W
RACT20-700
RECOM Lighting
LED Power Supplies 180-264VIN 15-28VOUT LED DRIVER AC/DC AC/DC-CONVERTER LED SUPPLY CC AC/DC 15-28V 700MA LED Power Supply,LED Driver,700mA,20W LED Drivers Power Supplies 180-264VIN 15-28VOUT LED DRIVER AC/DC LED driver, RACT20-700, Recom Recom LED 驱动器 , 15 → 28V, 0.7A, 20W LEDDr Module 20W 700mA DIMM
RACD20-700/277
Recom Power
LED SUPPLY CC AC/DC 14-29V 0.7A LED SUPPLY CC AC/DC 14-29V 700MA LED Driver,Constant Current,700mA,20W LED Drivers Power Supplies 20W 14-29V 350 mA ST LED DRIVER

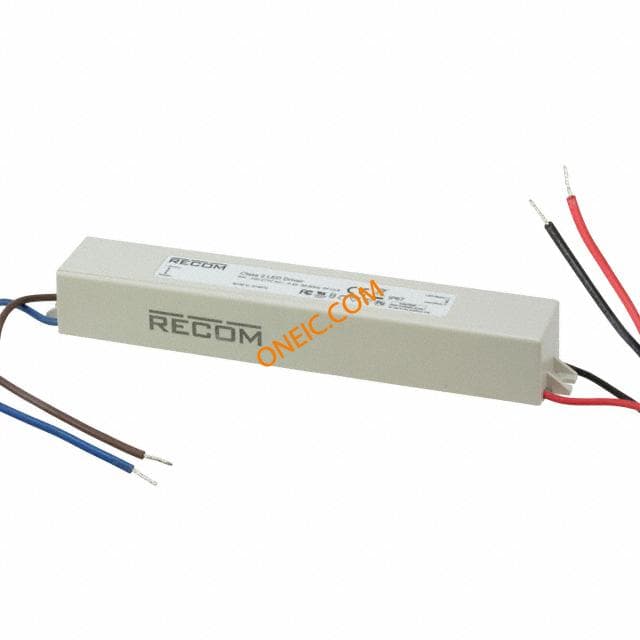

RACD25-700P
