点击放大查看

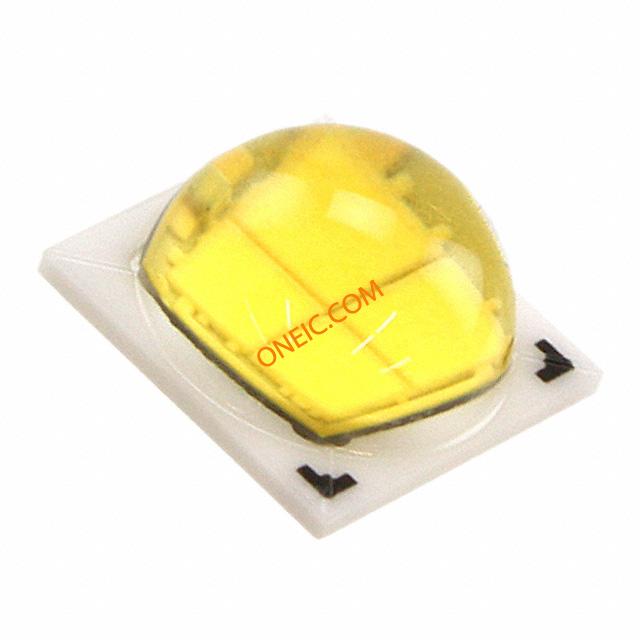

LXR7-SW40
| 制造商 | |
| 描述 | LED LUXEON M SMD LUXEON M LED White 4000K 840lm min High Power LEDs - White Neutral White, 4000K 900lm, 700mA, 70CRI |
| 分类 |
商业参数
| 商标名 | LUXEON | 标准包装数量 | 500 |
合规参数
| RoHS | Compliant | ||
电气参数
| 电压 | 11.2V | 波长 | 3985K |
| 光通量 | 905 lm | 视角 | 120 ° |
| 输出电流 | 700mA | 驱动电路 | No |
| 供电电压 | 11.2V | LED正向电流 | 700 mA |
| LED正向电压 | 12 V | 最大额定电流 | 1.05A |
| 光效 @ 测试电流 | 133 lm/W | 光通量 @ 85°C, 测试电流 | 1040 lm (Typ) |
机械参数
| 颜色 | White, Neutral | 宽度 | 7 mm |
| 高度 | 3.75 mm | 长度 | 7 mm |
| LED颜色 | White | 包装方式 | Reel |
| 灯颜色 | 4000 K | 透镜样式 | Circular |
| 安装类型 | PCB Surface Mount | 连接器类型 | No |
| 安装样式 | SMD/SMT | 引脚数 | 2 |
| 封装形式 | 2-SMD, No Lead | 连接器用途 | No |
| 包装数量 | 7 x 7 x 3.75mm | 背景色 | 4000K |
| 照明颜色 | Neutral White | 显色指数（CRI） | 70 |
产品信息
| 系列 | LUXEON M | 色温 (K) | 4000K |
| 配置 | Square | LED数量 | 1 |
| 每IC通道数 | Square | ||
环境参数
| 工作温度 | - 40 C | 封装热阻 | 1.25°C/W |
| 光通量 @ 电流/温度 | 905 lm | ||
