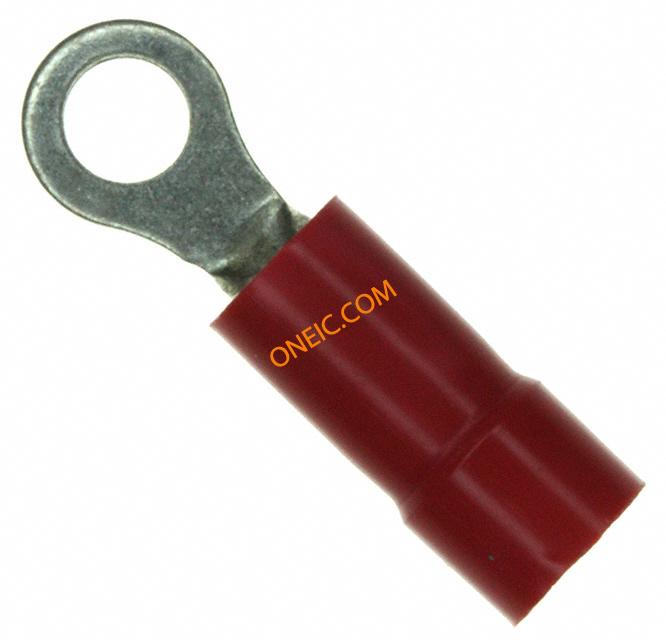

PV18-6R-CY
| 制造商 | Panduit Corp. |
| 描述 | Ring Tongue Terminal 18-22AWG 21.8mm 6.4mm Tin Terminals Ring term 22 - 18 vinyl insulated TERM RING VYL 22-18AWG #6 TERMINAL;RING VINYL INSULATED; 22-18AWG; #6 STUD TERMINAL, RING TONGUE, #6, CRIMP, RED TERMINAL,RINGVINYLINSULATED;22-18AWG;#6STUD Ring Terminal, Vinyl Insulated, 22 - 18 AWG, #6 Stud Size, Funnel Entry, Pack of 100 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
机械参数
| 颜色 | Red | 深度 | 6.4 mm |
| 宽度 | 6.4 mm | 长度 | 21.8 mm |
| 重量 | 3.360000 oz | 镀层 | Tin |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.032" (0.81mm) | 绝缘类型 | Insulated |
| 螺钉尺寸 | 6 | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 3.5 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 总宽度 | 0.25" |
| 触头材料 | Copper | 绝缘颜色 | :Red |
| 总长度 | 0.860" (21.84mm) | 包装数量 | 100 |
| 主要材料 | Ring | 端接样式 | Crimp |
| 绝缘直径 | 0.150" (3.81mm) | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.250" (6.35mm) | 绝缘材料 - 材质 | Vinyl |
| 线规或范围 - AWG | :22AWG | ||
产品信息
| 类型 | Ring Tongue Terminal | 系列 | :- |
| 产品特性 | Brazed Seam | 制造商全称 | PV18Series |
