点击放大查看

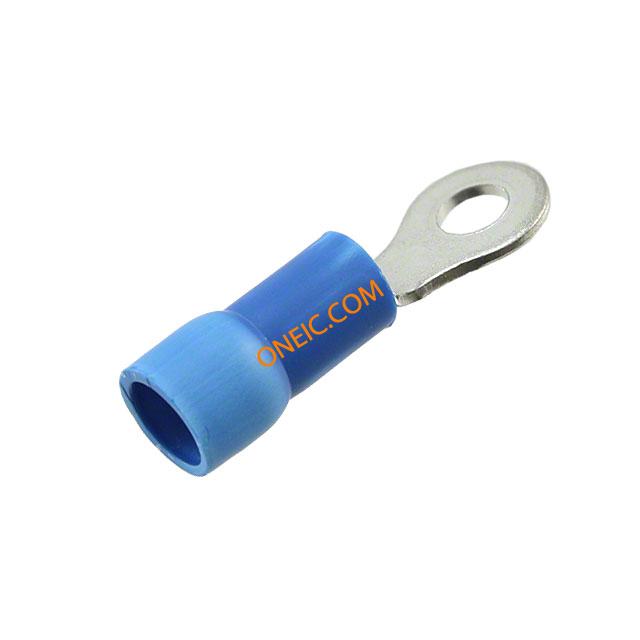

PV14-6RX-M
| 制造商 | Panduit Corp. |
| 描述 | Ring Tongue Terminal 14-16AWG 24.4mm 7.9mm Tin Bulk Terminals RING 16-14 BLUE VYL STUD SIZE #6 TERM RING EXP VYL 16-14AWG #6 Ring Terminal, Expanded Vinyl Insulation, 16 - 14 AWG, #6 Stud Size, Pack of 1000 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Blue | 长度 | 24.38 mm |
| 重量 | 2.590 lbs | 包装方式 | Bulk |
| 厚度 | 0.032" (0.81mm) | 绝缘类型 | Insulated |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 3.5 mm |
| 端子类型 | Circular | 接触镀层 | Tin |
| 触头材料 | Copper | 总长度 | 0.960" (24.38mm) |
| 绝缘直径 | 0.200" (5.08mm) | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.310" (7.87mm) | 绝缘材料 - 材质 | Vinyl |
产品信息
| 类型 | Ring Tongue Terminal | 系列 | PV14 |
| 产品特性 | Brazed Seam, Serrated Termination | ||
