点击放大查看

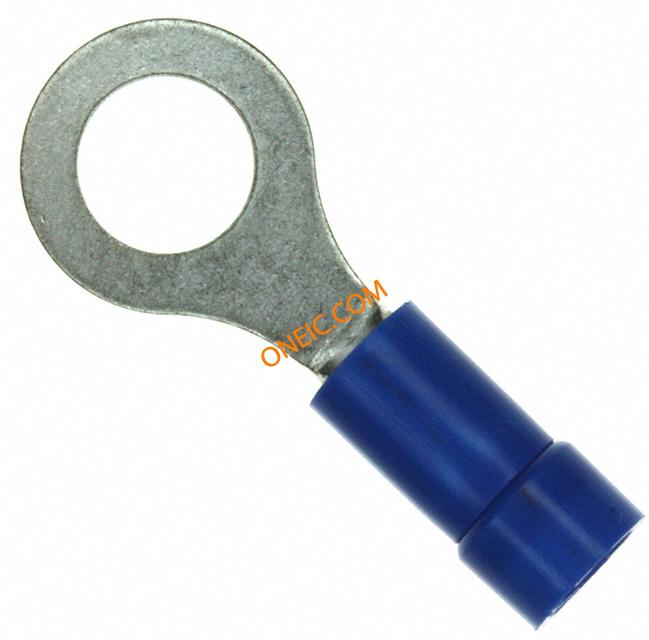

PV14-14R-C
| 制造商 | Panduit Corp. |
| 描述 | Ring Tongue Terminal 14-16AWG 28.5mm 11.7mm Tin Terminals Ring Terminal vinyl insulated 16 - 14awg TERM RING VYL 16-14AWG 1/4 TERMINAL;RING VINYL INSULATED; 16-14AWG; 1/4IN STUD TERMINAL, RING TONGUE, 1/4IN, CRIMP BLUE TERMINAL,RINGVINYLINSULATED;16-14AWG;1/4INSTUD Ring Terminal, Vinyl Insulated, 16 - 14 AWG, 1/4" Stud Size, Funnel Entry, Pack of 100 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
机械参数
| 颜色 | Blue | 深度 | 11.7 |
| 长度 | 1.12 in | 重量 | 5.120000 oz |
| 镀层 | Tin | 包装方式 | Bulk |
| 厚度 | 0.032" (0.81mm) | 绝缘类型 | Insulated |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6.35 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 触头材料 | Copper | 绝缘颜色 | :Blue |
| 总长度 | 1.120" (28.45mm) | 端接样式 | Crimp |
| 绝缘直径 | 0.170" (4.32mm) | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.460" (11.68mm) | 绝缘材料 - 材质 | Vinyl |
| 线规或范围 - AWG | :16AWG | ||
产品信息
| 类型 | Ring Tongue Terminal | 系列 | PV |
| 产品特性 | Brazed Seam | ||
