点击放大查看

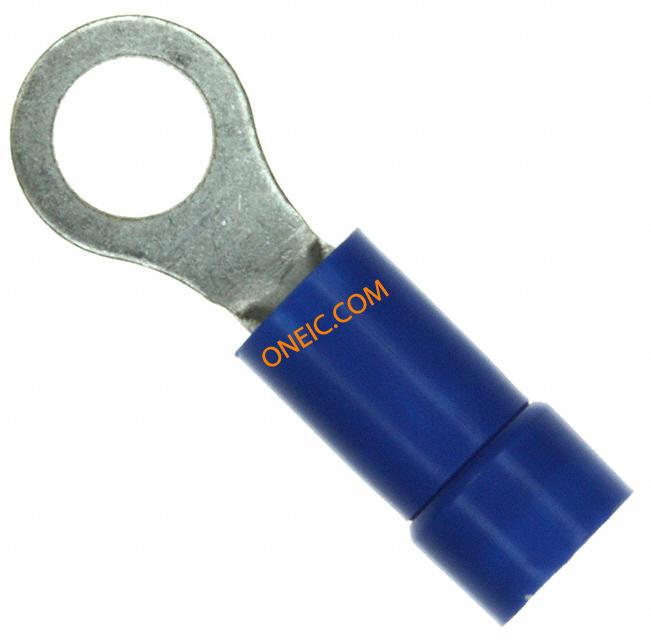

PV14-10R-C

制造商	Panduit Corp.
描述	Ring Tongue Terminal 14-16AWG 23.4mm 7.9mm Tin Terminals Ring Terminal vinyl insulated 16 - 14awg TERM RING VYL 16-14AWG #10 TERMINAL;RING VINYL INSULATED; 16-14AWG; #10 STUD TERMINAL, RING TONGUE, #10, CRIMP, BLUE TERMINAL,RINGVINYLINSULATED;16-14AWG;#10STUD Ring Terminal, Vinyl Insulated, 16 - 14 AWG, #10 Stud Size, Funnel Entry, Pack of 100 Ring Terminal, 16 14 AWG, #10 stud size, vinyl insulated, funnel entry.
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

产品	Ring Terminals	交货时间	14 Days
子类别	Connector Terminals	产品类别	Terminals
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010

机械参数

颜色	Blue	深度	7.9
长度	0.92 in	重量	4 oz
镀层	Tin	包装方式	Bulk
厚度	0.032" (0.81mm)	绝缘类型	Insulated
螺钉尺寸	10	导线线规	14-16 AWG
端接方式	Crimp	基体材料	Copper
安装类型	Free Hanging (In-Line)	螺柱/焊片尺寸	4.82 mm
端子类型	Circular	行程角度	Straight
连接器类型	:Ring Tongue	接触镀层	Tin
总宽度	0.31"	触头材料	Copper
绝缘颜色	:Blue	总长度	0.920" (23.37mm)
包装数量	100	主要材料	Ring
端接样式	Crimp	绝缘直径	0.170" (4.32mm)
绝缘材料 - 类型	Vinyl	外缘宽度	0.310" (7.87mm)
绝缘材料 - 材质	Vinyl	线规或范围 - AWG	:16AWG

产品信息

类型	Ring Tongue Terminal	系列	PV
产品特性	Brazed Seam	制造商全称	PV14Series

文档与媒体

PDF 文档

PDF 文档

PDF 文档

PDF 文档
