点击放大查看

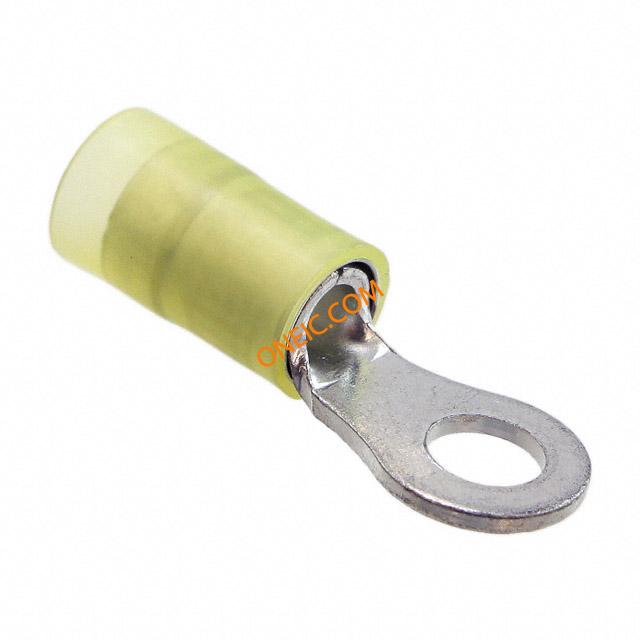

PN10-10R-D
| 制造商 | Panduit Corp. |
| 描述 | Ring Tongue Terminal 10-12AWG 26.9mm 9.7mm Tin Bulk Terminals #10 12-10 RING YELLO TERM RING NYL 12-10AWG #10 TERMINAL;RING NYLON INSULATED; 12-10AWG; #10 STUD TERMINAL, RING TONGUE, #10, CRIMP YELLOW TERMINAL,RINGNYLONINSULATED;12-10AWG;#10STUD Ring Terminal, 12-10 AWG, #10 stud size, nylon insulated, pack of 500 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 00000000 | ||
机械参数
| 颜色 | Yellow | 深度 | 9.7 |
| 长度 | 27.4 in | 重量 | 2.550 lbs |
| 镀层 | Tin | 包装方式 | Bulk |
| 厚度 | 0.040" (1.02mm) | 绝缘类型 | Insulated |
| 螺钉尺寸 | 10 | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 总宽度 | 0.38" | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 总长度 | 1.060" (26.92mm) |
| 包装数量 | 500 | 主要材料 | Ring |
| 端接样式 | Crimp | 绝缘直径 | 0.225" (5.72mm) |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.380" (9.65mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | :12AWG |
产品信息
| 类型 | Ring Tongue Terminal | 系列 | PN |
| 产品特性 | Barrel | 制造商全称 | PN10Series |
