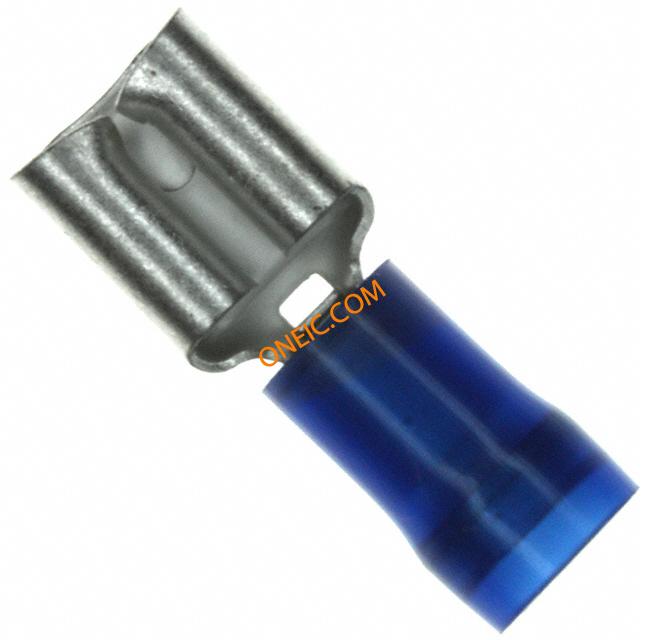

DNF14-250-M
| 制造商 | Panduit Corp. |
| 描述 | Quick Disconnect Terminal 14-16AWG F 21.08mm 17.37mm Tin Bulk Terminals 16-14 .250 FML DISC. DISC FEMALE NYLON 16-14AWG .25 DISCFEMALENYLONINSUL |
| 分类 |
商业参数
| 产品 | Disconnects | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Blue | 长度 | 21.08 mm |
| 重量 | 3 lbs | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 0.250" (6.35mm) |
| 绝缘类型 | Insulated | 导线线规 | 16-14 |
| 端接方式 | Crimp | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 接触镀层 | Tin | 总宽度 | 0.29" |
| 触头材料 | Brass | 总长度 | 0.830" (21.08mm) |
| 包装数量 | 1000 | 主要材料 | QuickDisconnect |
| 端接样式 | Crimp | 绝缘直径 | 0.162" ~ 0.050" (4.11mm ~ 1.27mm) |
| 绝缘材料 - 类型 | Nylon | ||
产品信息
| 连接器性别 | Female | 产品特性 | Serrated Termination |
| 制造商全称 | DNF14Series | ||
