点击放大查看

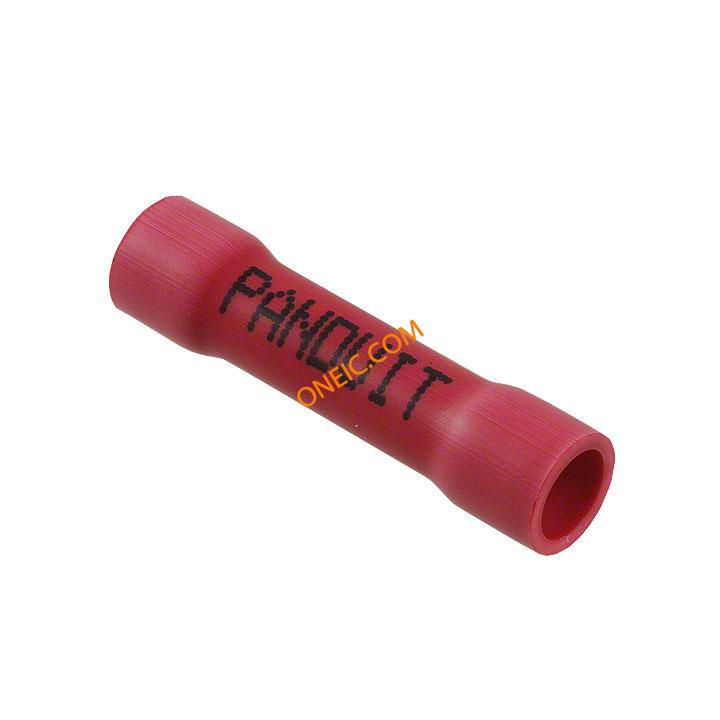

BSV18X-MY
| 制造商 | Panduit Corp. |
| 描述 | Splice Terminal 18-22AWG 26.16mm Tin Bulk Terminals BUTT SPLICE 22-18 CONN SPLICE BUTT 18-22AWG VINYL TERMINAL, BUTT SPLICE, 0.17IN, CRIMP RED Butt Splice, 22 - 18 AWG, vinyl insulated, bulk package. |
| 分类 |
商业参数
| 产品 | Splices | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 00000000 | ||
机械参数
| 颜色 | Red | 重量 | 3.400 lbs |
| 镀层 | Tin | 包装方式 | Bulk |
| 绝缘类型 | Insulated | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 螺柱/焊片尺寸 | :- | 端子类型 | Butt Splice, Inline, Individual Openings |
| 连接器类型 | :Butt Splice | 触头材料 | :Copper |
| 绝缘颜色 | :Red | 总长度 | 26.16 |
| 端接样式 | Solder Tab | 绝缘材料 - 类型 | Vinyl |
| 进线口数 | 2 | 线规或范围 - AWG | :22AWG |
产品信息
| 类型 | Splice Terminal | 系列 | BSV18X |
| 产品特性 | Brazed Seam | ||
