LC4HW-R6-DC24V
| 制造商 | Panasonic Corporation |
| 描述 | 6-Digit Display, 30Hz Cps /5 Khz Kcps Switchable LCD ELEC COUNTER DIN48 6DIGIT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
电气参数
| 复位 | External, Front Panel | 计数率 | 30Hz, 5kHz |
| 输入类型 | No Voltage | 输出类型 | Relay (2) |
| 显示类型 | LCD - Dual Color Characters, Backlight | 工作模式 | Up, Down, Command, Individual, Quadrature |
| 供电电压 | 12 ~ 24VDC | ||
机械参数
| 安装类型 | Panel Mount | 端接样式 | Plug In, 11 Pin (Octal) |
| 面板开孔尺寸（外形） | Square - 45.00mm x 45.00mm | ||
产品信息
| 类型 | Batch, Tachometer, Timer, Totalizer | 每行字符数 | 6, 6 |
环境参数
| 防护等级 | IP66 (Face) | 工作温度 | -10°C ~ 55°C |
相关型号

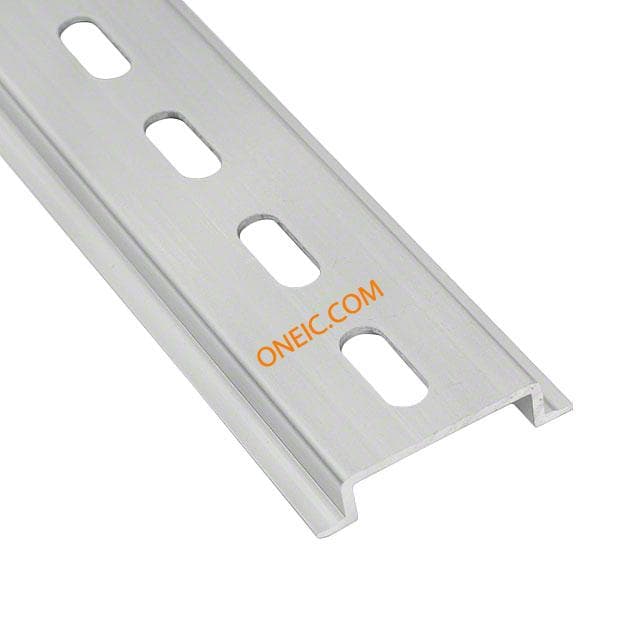

AT8-DLA1
