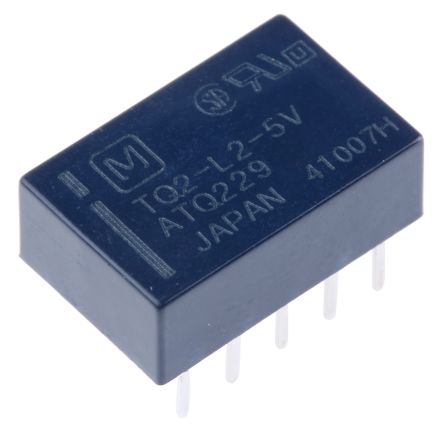

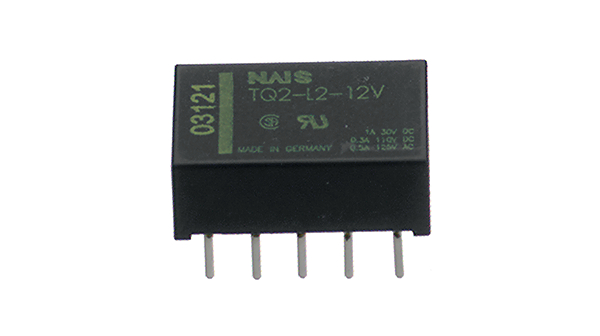

TQ2-L2-5V
| 制造商 | |
| 描述 | Low Signal Relays - PCB 1A 5VDC DPDT 2 COIL LATCHING PCB Electromechanical Relay DPDT 1A 5VDC 125Ohm Through Hole RELAY TELECOM DPDT 1A 5V Relay;E-Mech;Latching;DPDT-NO/NC;Cur-Rtg 0.5/1AAC/ADC;Ctrl-V 5DC;PCB Mnt;Solder SIGNAL RELAY DPDT 5VDC, 1A, THROUGH HOLE Relay;E-Mech;Latching;DPDT-NO/NC;Cur-Rtg0.5/1AAC/ADC;Ctrl-V5DC;PCBMnt;Solder Signal Relay Coil Voltage: 5 VDC Contact Configuration: 2C DPDT Current: 1 Amp Mounting: PC Board Operating Function: 2 Coil Latching Signal relay 5 VDC 125 Ohm 200 mW THD, TQ2-L2-5V, Panasonic Panasonic 双刀双掷 PCB 高频继电器, 5V dc |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Low Signal Relays - PCB | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
| 海关税号 | 85364110 | 抗辐射加固 | No |
电气参数
| 线圈类型 | Latching, 2 Coils | 隔离 | 15 dB at 1 GHz |
| 线圈功率 | 200 mW | 线圈电流 | 40 mA |
| 线圈电压 | 5V | 释放时间 | 3ms |
| 额定功率 | 30W|62.5VA | 插入损耗 | 0.6 dB at 1 GHz |
| 可见输出 | No | 额定电压 | 110 |
| 线圈电阻 | 125 Ohms | 推频（MHz/V） | No |
| 供电电压 | 5 VDC | 开关电压 | 125VAC, 110VDC - Max |
| 钳位电压 | 3.75VDC | 额定交流电压 | 125V |
| 二极管配置 | No | 最大额定电流 | 1 A |
| 最大触点电流 | :1A | 最小输入电压 | 125 |
| 平均正向功率 | 200 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 3.75 VDC |
| 触点额定电流 | 1 A | 触点额定值 @ 电压 | 1 A at 30 VDC / 500 mA at 125 VAC |
| 供电电压 (Vcc/Vdd) | :30V | 直流反向电压（Vr）（最大） | 110 V |
| 高侧电压（自举）最大 | 3.75VDC | 额定交流电压（相对地/中性线） | :125V |
机械参数

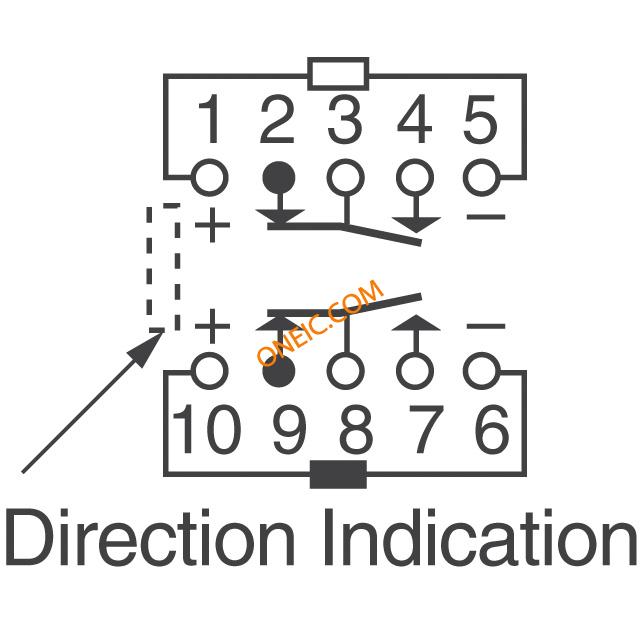

| 密封 | Unsealed | 深度 | 9 mm |
| 高度 | 5 mm | 重量 | 0.002 |
| 包装方式 | Tube | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 封装形式 | DIP | 冷却的封装 | DIP |
| 触头材料 | Silver/Gold Clad | 总长度 | 14 mm |
| 端接样式 | Solder Terminal | 触点数 | 10 |
| 位数 | 10 | 典型触点布局 | DPDT |
产品信息
| 类型 | General Purpose Relay | 继电器类型 | Latching Double Coil |
| 按下测试类型 | No | ||
环境参数
| 动作时间 | 3ms | 工作温度 | -40°C ~ 70°C |
文档与媒体
PDF 文档
PDF 文档
PDF 文档
PDF 文档
PDF 文档
