点击放大查看
NC2-JPS
| 制造商 | |
| 描述 | Relay Sockets & Hardware NC2-flat type PC board socket Conn Relay Socket SKT 10 POS Solder ST Thru-Hole SOCKET PCB FOR FLAT NC2D-JP RELAY SOCKET NC-2 Flat Type PC Board Transistor Drive Slim Power Relay |
| 分类 |
商业参数
| 产品类别 | Relay Sockets & Hardware | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 44.3 | 高度 | 14.8 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 安装样式 | PCB |
| 排数 | 2 | 总长度 | 25.4 |
| 端接样式 | Screw | 触点数 | 10 |
| 位数 | 8 | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | NC | 附件类型 | Socket |
| 适用产品/相关产品 | NC2D-JP Relays | ||
文档与媒体
相关型号

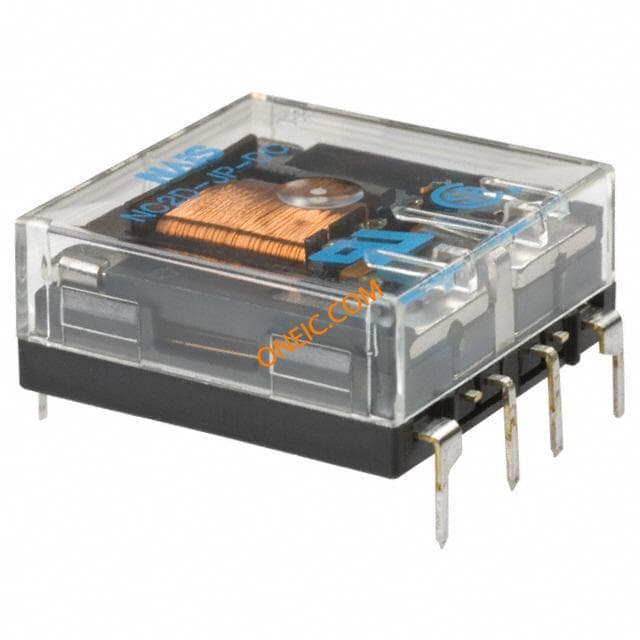

NC2D-JP-DC48V
Panasonic Electric Works
General Purpose Relays 2 Form C 5A 250VAC 48VDC RELAY GEN PURPOSE DPDT 5A 48V Electromechanical Relay DPDT 5A 48VDC 6.4KOhm Through Hole General Purpose Relay Coil Voltage: 48 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable
NC2D-JP-DC24V
Panasonic Electric Works
General Purpose Relays 5A 24VDC DPDT FLAT PCB Electromechanical Relay DPDT 5A 24VDC 1.6KOhm Through Hole RELAY GEN PURPOSE DPDT 5A 24V POWER RELAY, DPDT, 24VDC, 5A, PC BOARD General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable
NC2D-JP-DC12V
Panasonic Electric Works
General Purpose Relays 5A 12VDC DPDT FLAT PCB Electromechanical Relay DPDT 5A 12VDC 400Ohm Through Hole RELAY GEN PURPOSE DPDT 5A 12V General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable NC Series 5 A DPDT 12 VDC Through Hole High Power Dual Contact Power Relay
NC2D-JP-DC5V
Panasonic Electric Works
General Purpose Relays 5A 5VDC DPDT FLAT PCB Electromechanical Relay DPDT 5A 5VDC 69.4Ohm Through Hole RELAY GENERAL PURPOSE DPDT 5A 5V General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable
NC2EBD-JP-DC24V
Panasonic Electric Works
General Purpose Relays 5A 24V DPDT AMB SEAL FLAT PCB Electromechanical Relay DPDT 5ADC/3AAC 24VDC 1.6KOhm Through Hole RELAY GEN PURPOSE DPDT 5A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable
NC2EBD-JP-DC12V
Panasonic Electric Works
General Purpose Relays 5A 12V DPDT AMB SEAL FLAT PCB Electromechanical Relay DPDT 5ADC/3AAC 12VDC 400Ohm Through Hole RELAY GEN PURPOSE DPDT 5A 12V POWER RELAY, DPDT, 12VDC, 3A, PC BOARD General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable
NC2EBD-JP-DC5V
Panasonic Electric Works
General Purpose Relays 5A 5V DPDT AMB SEAL FLAT PCB Electromechanical Relay DPDT 5ADC/3AAC 5VDC 69.4Ohm Through Hole RELAY GENERAL PURPOSE DPDT 5A 5V POWER RELAY, 5VDC, 5A, DPDT, PCB General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable

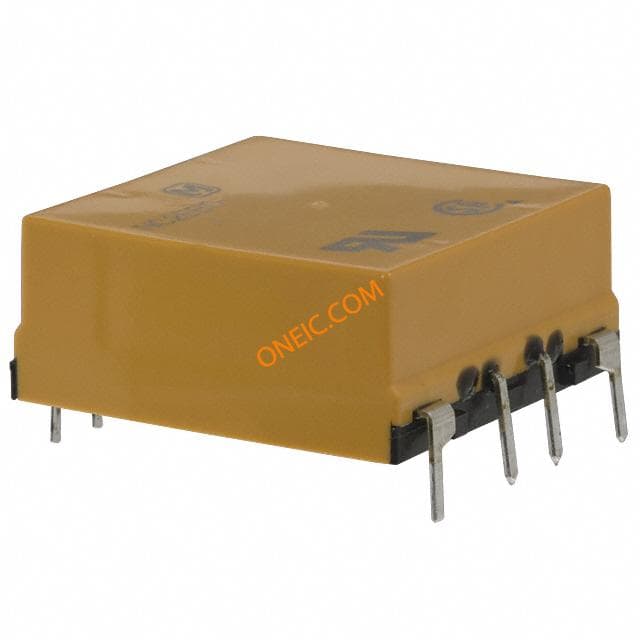

NC2EBD-JP-DC48V
Panasonic Electric Works
General Purpose Relays 2 Form C 5A 250VAC Sealed type 48VDC RELAY GEN PURPOSE DPDT 5A 48V Electromechanical Relay DPDT 5ADC/3AAC 48VDC 6.4KOhm Through Hole General Purpose Relay Coil Voltage: 48 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable
NC2D-JP-DC3V
Panasonic Electric Works
General Purpose Relays 2 Form C 5A 250VAC 3VDC RELAY GENERAL PURPOSE DPDT 5A 3V Electromechanical Relay DPDT 5A 3VDC 25Ohm Through Hole General Purpose Relay Coil Voltage: 3 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable
NC2D-JP-DC6V
Panasonic Electric Works
General Purpose Relays 2 Form C 5A 250VAC 6VDC Electromechanical Relay DPDT 5A 6VDC 100Ohm Through Hole RELAY GENERAL PURPOSE DPDT 5A 6V General Purpose Relay Coil Voltage: 6 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable
