HC2-HL-AC100V-F
| 制造商 | |
| 描述 | General Purpose Relays RELAY POWER DPDT 7A 100V PLUG-IN RELAY GEN PURPOSE DPDT 7A 100V Electromechanical Relay DPDT 7A 100/110VAC Plug-In |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 线圈类型 | Single Side Stable | 线圈功率 | 1.2 VA |
| 线圈电流 | 13.2mA | 释放时间 | 20ms |
| 供电电压 | 100 V, 110 V | 开关电压 | 250VAC - Max |
| Vgs(th)（最大）@ Id | 30 VAC | 平均正向功率 | 1.3 VA at 50 Hz, 1.2 VA at 60 Hz |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 80 VAC | 触点额定电流 | 7A |
机械参数
| 包装方式 | Bulk | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socketable | 安装样式 | Plug In |
| 触头材料 | Silver Alloy | 端接样式 | Quick Connect |
| 接触件端接 | Quick Connect | ||
产品信息
| 产品特性 | LED Indicator | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 20ms | 工作温度 | -50°C ~ 60°C |
文档与媒体
相关型号
HC2-PS-K
panasonic electric works
HC RELAYS, 2 FORM C Relay Sockets & Hardware W/CLIP FOR HC2 RELAY Relay Socket W/Clip Hc2 Pcb ,Miniature Relay For Wider Applications ACCY RELAY SOCKET W/CLIP HC2 PCB HC2RelaySocket PCB SOCKET* WITH HOLD DOWN SPRING Relay socket for HC2, HC2-PS-K, Panasonic
HC2-SFD-K
Panasonic Electric Works
Relay Sockets & Hardware SCREW/CLIP FOR HC2 RELAY Conn Relay Socket SKT 8 POS Screw ST Thru-Hole SOCKET SCRW W/CLIP FOR HC2 RELAY Socket,Relay;Screwterminal,forHCrelay DIN RAIL MOUNT SOCKET* WITH HOLD DOWN SPRING
HC2-SF-K
Panasonic Electric Works
Relay Sockets & Hardware W/CLIP FOR HC2-H RELAY Relay Accessories For Wider Applications ACCY RELAY SOCKET W/CLIP FOR HC2 Relay Socket; Leaded Process Compatible:Yes; Contact Rating:3A; DPDT RELAY SOCKET Socket,Relay;LeadedProcessCompatible:Yes,ContactRating:3A,DPDT RELAY SOCKET (NON DIN RAIL MOUNT)* WITH HOLD DOWN SPRING

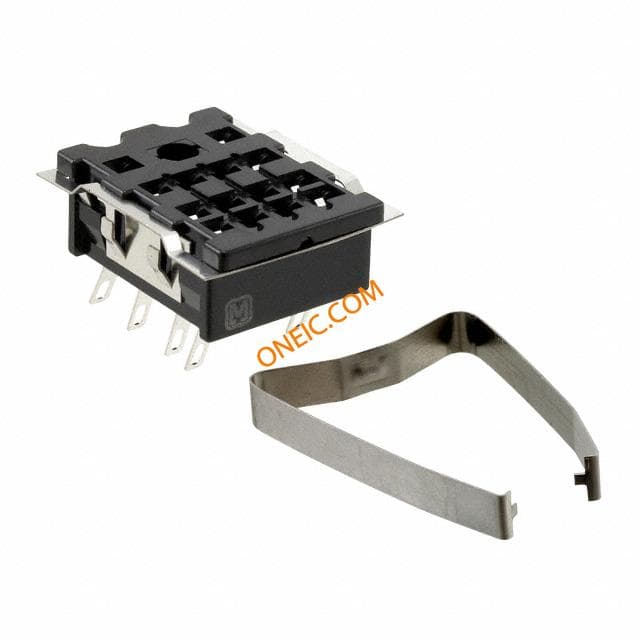

HC2-SS-K
