HC1-H-DC12V-F
| 制造商 | |
| 描述 | General Purpose Relays 10A 12VDC SPDT PLUG-IN Electromechanical Relay SPDT 10A 12VDC 160Ohm Plug-In RELAY GEN PURPOSE SPDT 10A 12V POWER RELAY, SPDT, 12VDC, 10A, PLUG IN HC1Relay,Plug-inType,[RoHSCompliant] General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 1C SPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364110 | ||
电气参数
| 线圈类型 | Standard | 线圈功率 | 900 mW |
| 量程（°/s） | :PANASONIC EW - HC Series | 线圈电流 | 75 mA |
| 释放时间 | 20ms | 额定功率 | 2.5kVA |
| 可见输出 | No | 线圈电阻 | 160 Ohms |
| 推频（MHz/V） | No | 输出电流 | :10A |
| 供电电压 | 12 V | 开关电压 | 250VAC - Max |
| Vgs(th)（最大）@ Id | 1.2 VDC | 钳位电压 | 9.6VDC |
| 二极管配置 | No | 最大额定电流 | 10 |
| 触点电压（最大） | :250V | 最小输入电压 | 1.2VDC |
| 平均正向功率 | 900 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 9.6 VDC |
| 触点额定电流 | 10A | 数字供电电压 | :30V |

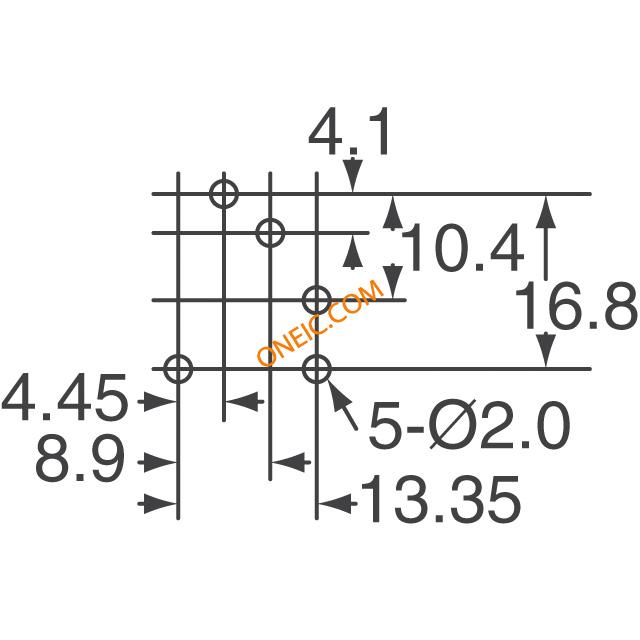

机械参数

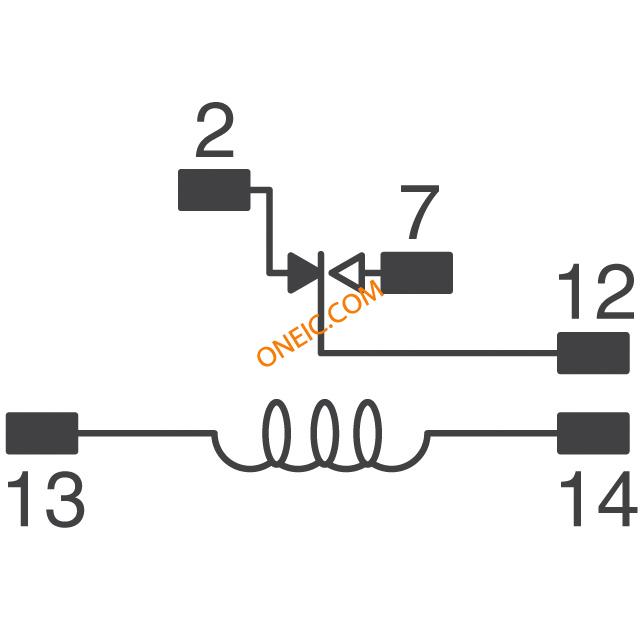

| 密封 | Unsealed | 深度 | 20.8 |
| 高度 | 35.2 | 重量 | 0.023 |
| 包装方式 | Bulk | 触点形式 | 1 Form C (SPDT-BM) |
| 安装类型 | Plug-In | 安装样式 | Plug In |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Tin Oxide |
| 总长度 | 27.2 | 端接样式 | Quick Connect |
| 触点数 | 5 | 接触件端接 | Quick Connect |
| 典型触点布局 | SPDT | ||
产品信息
| 类型 | Miniature Power Relay | 系列 | :HC |
| 继电器类型 | Non-Latching | ||
环境参数
| 动作时间 | 20ms | 工作温度 | -50°C ~ 70°C |
