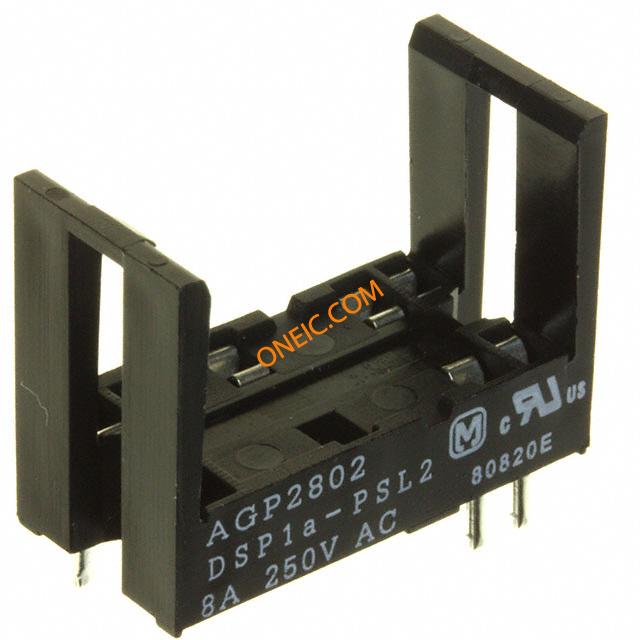

DSP1A-PSL2
| 制造商 | |
| 描述 | Relay Sockets & Hardware DSP Relay Socket 1 Form A 2 Conn Relay Socket SKT 6 POS Solder ST Thru-Hole SOCKET PC MNT FOR DSP1A-L2 RELAY Socket; PCB Mount; 3000 V (RMS); 8 A (Max.); 1000 Megohms (Between Terminals) Socket,Relay;PCBMount;3000V(RMS);8A;1000Megohms(BetweenTerminals) HC4 Relay Socket Socket for DSP Small Polarized Power Series Relay |
| 分类 |
商业参数
| 产品类别 | Relay Sockets & Hardware | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 击穿电压 | 3000V(RMS) | 最大额定电流 | 8A |
| 绝缘电阻 | 1000Megohms(BetweenTerminals) | ||
机械参数
| 深度 | 11 | 宽度 | 11mm |
| 高度 | 17mm | 长度 | 23mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Straight | 安装样式 | Through Hole |
| 排数 | 2 | 总长度 | 23 |
| 端接样式 | PCB | 触点数 | 6 |
| 位数 | 6 | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | DSP1a, DSP1a-L2 | 附件类型 | Socket, PCB |
| 应用细节 | Use with DSP1a and DSP1a-L2 series | 适用产品/相关产品 | DSP1A-L2 Relays |
文档与媒体
相关型号

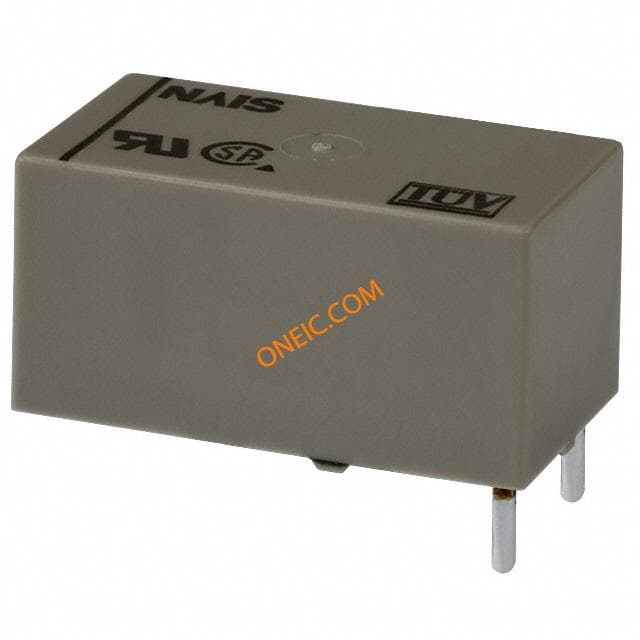

DSP1A-L2-DC12V-R
Panasonic Electric Works
General Purpose Relays 1 Form A 12VDC 1 Form A 8A 250VAC RELAY GEN PURPOSE SPST 8A 12V Electromechanical Relay SPST-NO 5ADC/8AAC 12VDC 480Ohm Through Hole General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: 2 Coil Latching PCB power relay 12 VDC 300 mW, DSP1A-L2-DC12V-R, Panasonic
DSP1A-L2-DC9V
Panasonic Electric Works
General Purpose Relays 1 Form A 9VDC 1 Form A 8A 250VAC RELAY GENERAL PURPOSE SPST 8A 9V Electromechanical Relay SPST-NO 5ADC/8AAC 9VDC 270Ohm Through Hole General Purpose Relay Coil Voltage: 9 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: 2 Coil Latching PCB power relay 9 VDC 300 mW, DSP1A-L2-DC9V, Panasonic
DSP1A-L2-DC5V
Panasonic Electric Works
General Purpose Relays 8A 5VDC SPST 2 COIL LATCHING PCB Electromechanical Relay SPST-NO 5ADC/8AAC 5VDC 83Ohm Through Hole RELAY GENERAL PURPOSE SPST 8A 5V General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: 2 Coil Latching PCB power relay 5 VDC 300 mW, DSP1A-L2-DC5V, Panasonic
DSP1A-L2-DC5V-R
Panasonic Electric Works
General Purpose Relays 1 Form A 5VDC 1 Form A 8A 250VAC RELAY GENERAL PURPOSE SPST 8A 5V Electromechanical Relay SPST-NO 5ADC/8AAC 5VDC 83Ohm Through Hole General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: 2 Coil Latching
DSP1A-L2-DC6V
Panasonic Electric Works
General Purpose Relays 1 Form A 6VDC 1 Form A 8A 250VAC Electromechanical Relay SPST-NO 5ADC/8AAC 6VDC 120Ohm Through Hole RELAY GENERAL PURPOSE SPST 8A 6V RELAY, PCB, SPNO, 8A, 6VDC General Purpose Relay Coil Voltage: 6 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: 2 Coil Latching
DSP1A-L2-DC3V
Panasonic Electric Works
General Purpose Relays 1 Form A 3VDC 1 Form A 8A 250VAC RELAY GENERAL PURPOSE SPST 8A 3V Electromechanical Relay SPST-NO 5ADC/8AAC 3VDC 30Ohm Through Hole RELAY, PCB, SPNO, 8A, 3VDC General Purpose Relay Coil Voltage: 3 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: 2 Coil Latching DSP Series 8 A SPST 3 VDC Through Hole Miniature 2 Coil Latching Power Relay PCB power relay 3 VDC 300 mW, DSP1A-L2-DC3V, Panasonic
