CB1-D-M-12V
| 制造商 | |
| 描述 | Automotive Relays 40A 12VDC 1 FORM C W/DIO SEAL BRKT Electromechanical Relay SPDT 40(NO)/30(NC)A 12VDC 103Ohm Bracket Mount RELAY AUTOMOTIVE SPDT 40A 12V AUTOMOTIVE RELAY, SPDT, 12VDC, 40A CBRelay Automotive Relay Coil Voltage: 12 VDC Contact Configuration: 1C SPDT Current: 40 Amps Mounting: Bracket Operating Function: Single Side Stable CB Series 30 A SPDT 12 VDC Bracket Mount Inner Diode Automotive Relay |
| 分类 |
商业参数
| 产品类别 | Automotive Relays | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
| 海关税号 | 85364110 | ||
电气参数
| 线圈类型 | With Diode Inside | 线圈功率 | 1.4 W |
| 线圈电流 | 117 mA | 额定功率 | 1.4W |
| 可见输出 | No | 额定电压 | 14 |
| 线圈电阻 | 103 Ohms | 推频（MHz/V） | No |
| 供电电压 | 12 VDC | 开关电压 | 14VDC - Nom |
| Vgs(th)（最大）@ Id | 1.2 VDC | 钳位电压 | 7VDC |
| 二极管配置 | Yes | 最大额定电流 | 40(NO)/30(NC) |
| 最大触点电流 | :40A | 最小输入电压 | 4.2VDC |
| 平均正向功率 | 1.4 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 7 VDC |
| 触点额定电流 | 40A | 供电电压 (Vcc/Vdd) | :14V |
机械参数
| 密封 | Sealed | 深度 | 22 |
| 宽度 | :22mm | 高度 | 52 |
| 重量 | 0.032 | 包装方式 | Bulk |
| 触点形式 | 1 Form C (SPDT-BM) | 高度（最大） | :25mm |
| 安装类型 | Bracket Mount | 安装样式 | Panel |
| 触头材料 | Silver Alloy | 总长度 | 30 |
| 端接样式 | Clip | 触点数 | 5 |
| 接触件端接 | Clip | 典型触点布局 | SPDT |
产品信息
| 类型 | Automotive Relays | 产品特性 | Diode, Sealed - Fully |
| 继电器类型 | Non-Latching | ||
环境参数
| 动作时间 | 15ms | 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. |
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号

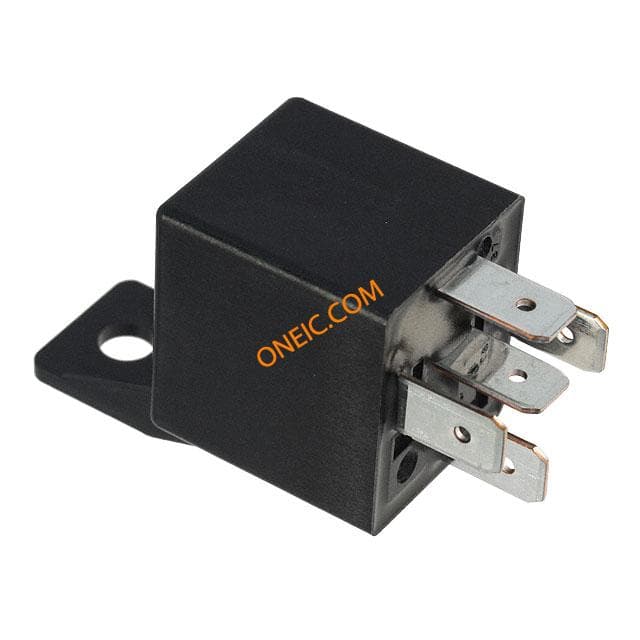

CB1-R-M-12V
