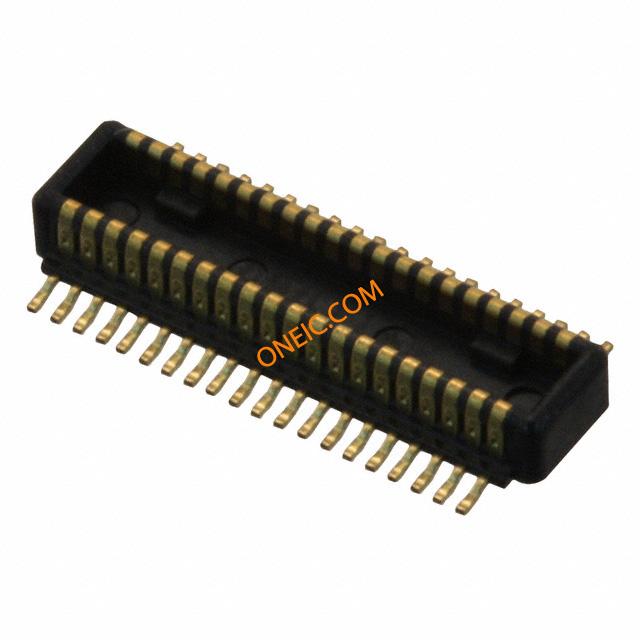

AXK840145WG
| 制造商 | Panasonic Corporation |
| 描述 | Conn Board to Board HDR 40 POS 0.4mm Solder ST SMD Embossed T/R CONN HEADER P4 .4MM 40POS SMD Board to Board & Mezzanine Connectors CONN HEADER P4 40 POS 0.4mm 40 Position 0.4 mm Pitch Dual Row Board to Board Surface Mount Header Connector |
| 分类 |
商业参数
| 其他名称 | 255-2527-2 | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 60 V | 接触电阻 | 70 |
| 最大额定电流 | 300 mA | 最小输入电压 | 60VDC|60VAC |
机械参数
| 深度 | 3.12 | 间距 | 0.4 mm |
| 高度 | 1.31 | 包装方式 | Embossed Tape and Reel |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Header, Outer Shroud Contacts |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Liquid Crystal Polymer |

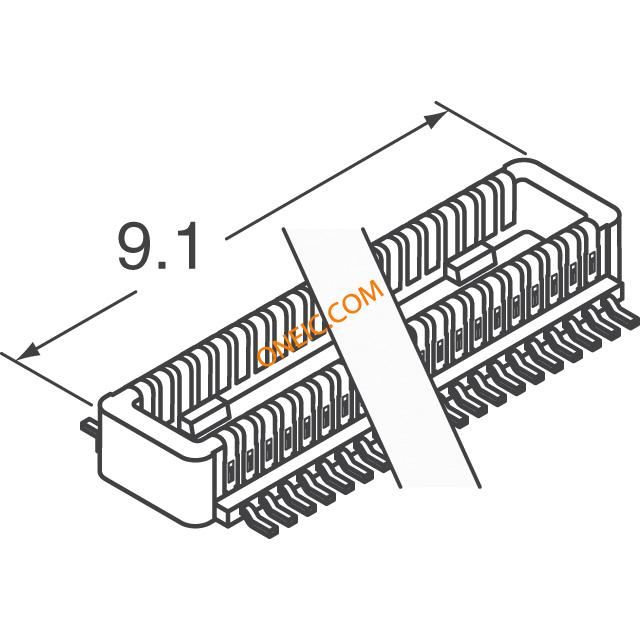

| 总长度 | 9.1 | 端接样式 | SMD |
| 板面高度 | 0.052" (1.32mm) | 触点数 | 40 |
| 位数 | 40 | 安装高度（最大） | 0.052" (1.32mm) |
| 配接堆叠高度 | 1.5mm, 2mm, 2.5mm | ||
产品信息
| 类型 | Board to Board | 连接器性别 | HDR |
| 系列 | P4 | 产品子类型 | Headers |
环境参数
| 插拔次数 | 1.5mm, 2mm, 2.5mm | ||
